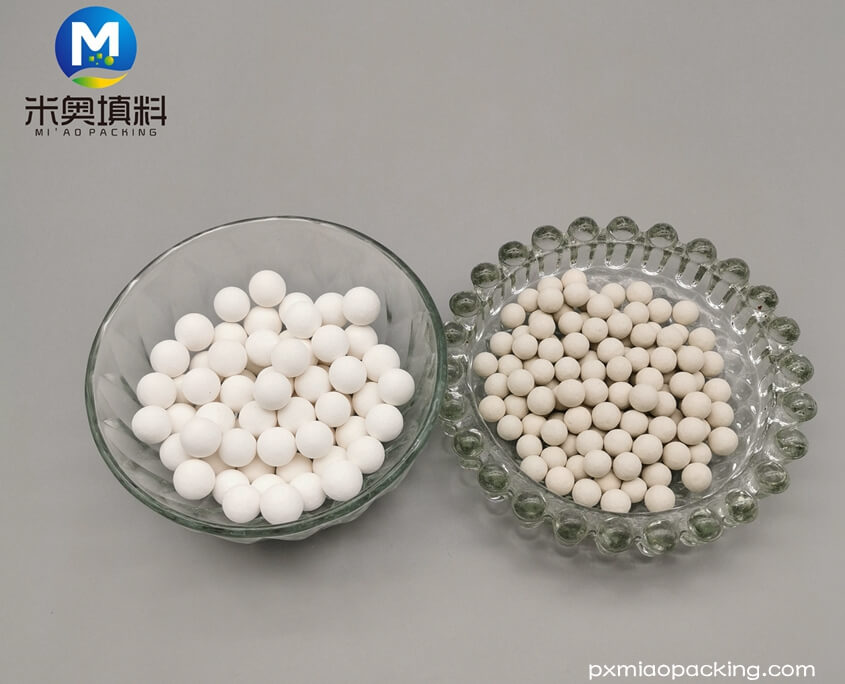

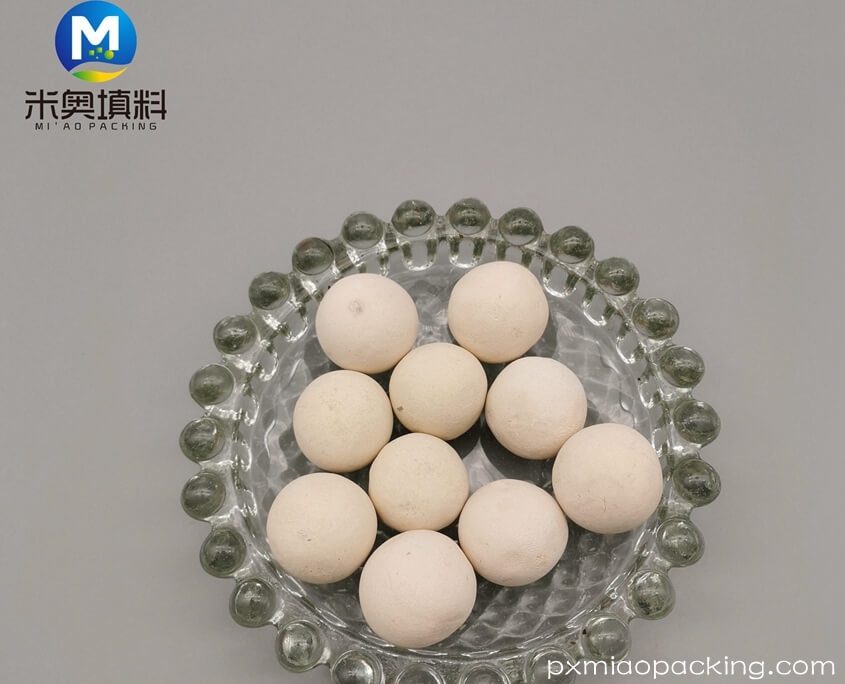

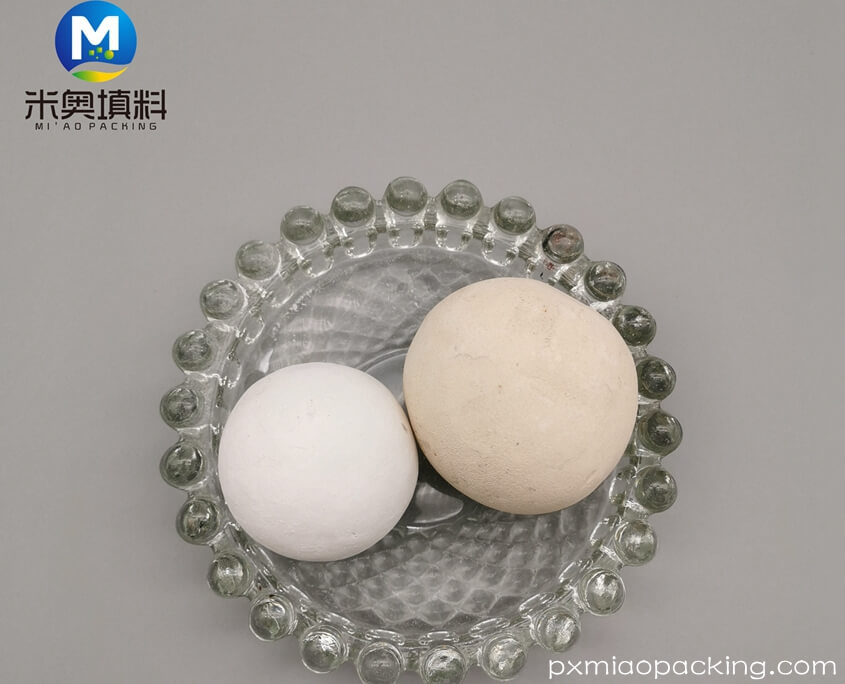

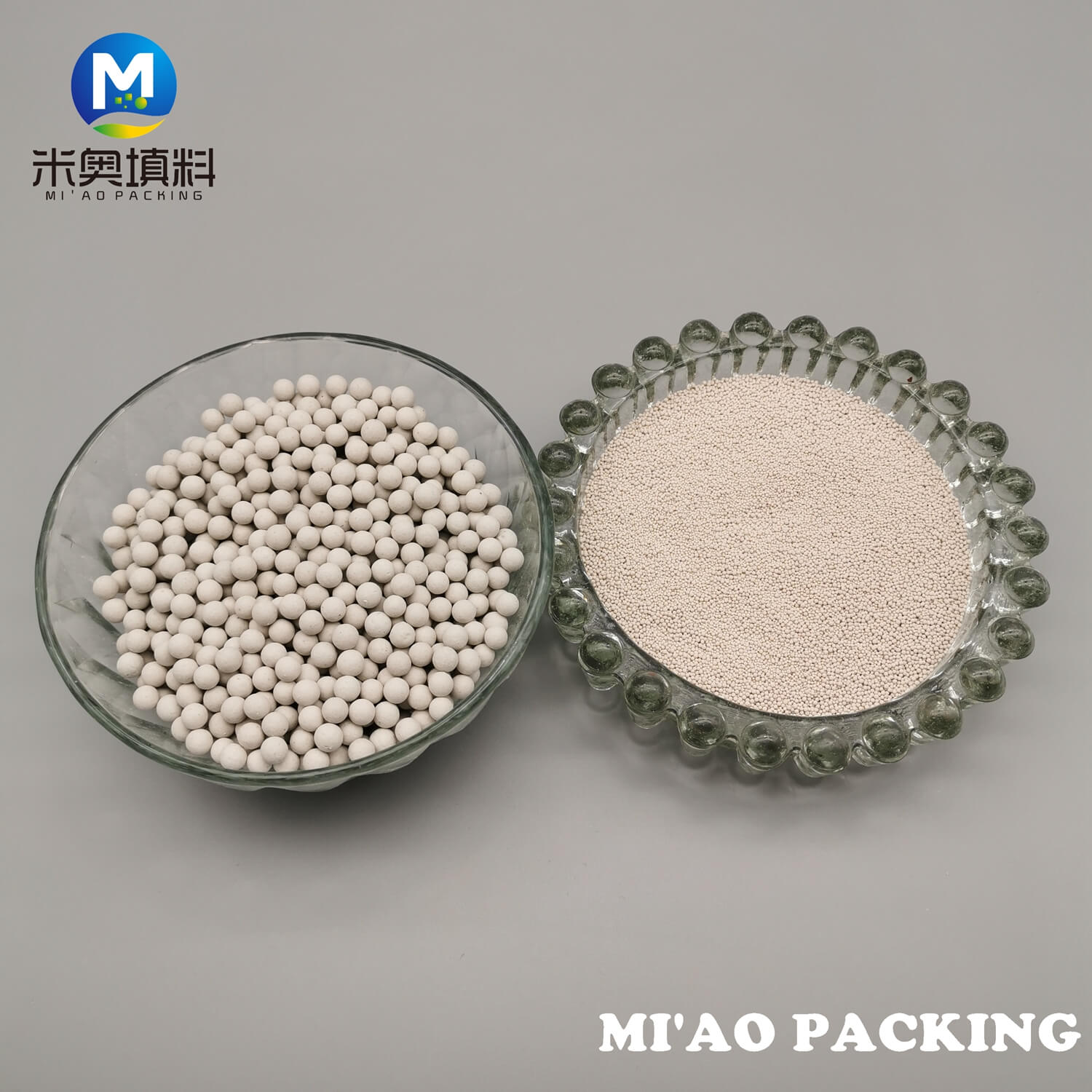

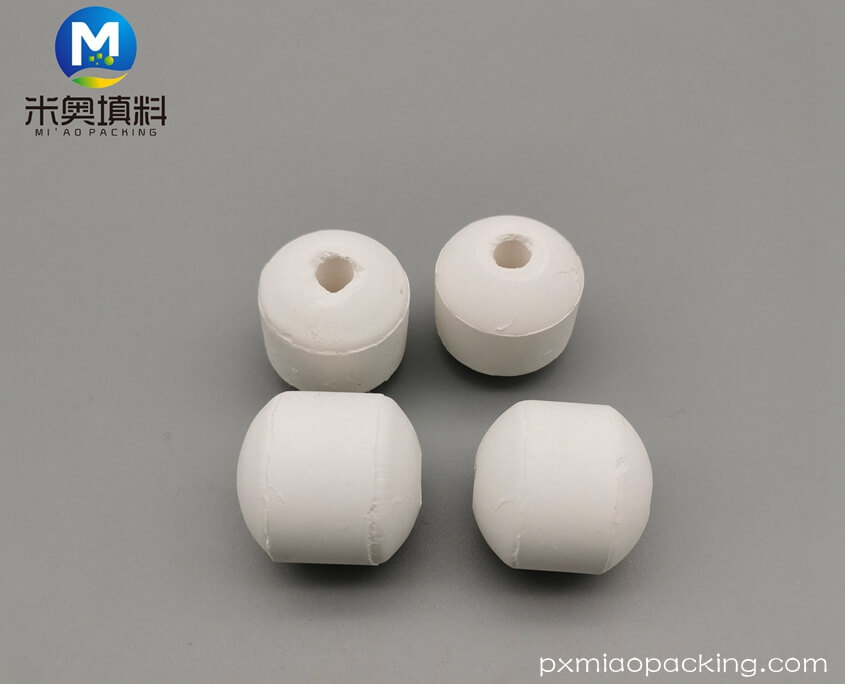

Alumina Ceramic Ball
Inert alumina balls are widely used in petroleum,chemical engineering, fertilizer, smelting , gas and environment protection.They are used as covering and supporting material of catalyst in reaction vessel and as packing in towers.Ceramic ball has the feature of high temperature resistant ,low water absorption and stable chemical performance.It can not only resist the corrosion from the acid ,alkali and other organic solvent,but also the temperature change in production process.
The main role of inert ceramic ball is to increase the distributing spot of gas or liquid ,also support and protect the activated catalyst with low strength.
Application
As catalyst bed Supports
Petrochemical industry
Chemical engineer industry
Fertilizer industry
Natural gas industry
Environment protection
Introduction:
Inert alumina balls are widely used in petroleum,chemical engineering, fertilizer, smelting , gas and environment protection.They are used as covering and supporting material of catalyst in reaction vessel and as packing in towers.Ceramic ball has the feature of high temperature resistant ,low water absorption and stable chemical performance.It can not only resist the corrosion from the acid ,alkali and other organic solvent,but also the temperature change in production process.
The main role of inert ceramic ball is to increase the distributing spot of gas or liquid ,also support and protect the activated catalyst with low strength.
Application
As catalyst bed Supports
Petrochemical industry
Chemical engineer industry
Fertilizer industry
Natural gas industry
Environment protection
Advantage
Excellent stability
High mechanical strength
Resist high temperatures
Resistance to thermal shock
Resist the corrosion of acid, alkali and some other organic solvents.
Technical Data
Type | Feldspar | Feldspar-Mullite | Mullite | Mullite-Corundum | Corundum | |
Item | ||||||
Chemical composition % | Al2O3 | 20-30 | 30-45 | 45-70 | 70-90 | ≥ 90 |
Al2O3+SiO2 | ≥ 90 | |||||
Fe2O3 | ≤ 1 | |||||
Water absorption, % | ≤ 5 | |||||
Acid resistance, % | ≥ 98 | |||||
Alkali resistance, % | ≥ 80 | ≥ 82 | ≥ 85 | ≥ 90 | ≥ 95 | |
Thermal resistance | ≥ 1300 | ≥ 1400 | ≥ 1500 | ≥ 1600 | ≥ 1700 | |
Crushing strength N/grain |
Φ 3 | ≥ 120 | ≥ 140 | ≥ 150 | ≥ 160 | ≥ 200 |
Φ 6 | ≥ 400 | ≥ 420 | ≥ 440 | ≥ 480 | ≥ 500 | |
Φ 8 | ≥ 480 | ≥ 520 | ≥ 600 | ≥ 620 | ≥ 650 | |
Φ 10 | ≥ 600 | ≥ 700 | ≥ 800 | ≥ 900 | ≥ 1000 | |
Φ 13 | ≥ 1000 | ≥ 1100 | ≥ 1300 | ≥ 1500 | ≥ 1800 | |
Φ 16 | ≥ 1500 | ≥ 1600 | ≥ 1800 | ≥ 2300 | ≥ 2600 | |
Φ 20 | ≥ 1800 | ≥ 2000 | ≥ 2300 | ≥ 2800 | ≥ 3200 | |
Φ 25 | ≥ 2500 | ≥ 2800 | ≥ 3200 | ≥ 3600 | ≥ 4000 | |
Φ 30 | ≥ 3000 | ≥ 3200 | ≥ 3500 | ≥ 4000 | ≥ 4500 | |
Φ 38 | ≥ 4000 | ≥ 4500 | ≥ 5000 | ≥ 5500 | ≥ 6000 | |
Φ 50 | ≥ 6000 | ≥ 6500 | ≥ 7000 | ≥ 8500 | ≥ 10000 | |
Φ 75 | ≥ 10000 | ≥ 11000 | ≥ 12000 | ≥ 14000 | ≥ 15000 | |
Bulk density, kg/m 3 | 1300-1400 | 1400-1500 | 1500-1600 | 1600-1800 | ≥ 1800 |
Package
Woven bags with 25kgs/bag
Jumbo bags with 1000kgs/bag
Pallet with 1cbm/pall
Warranty:
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
MOQ: min.1ton
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
