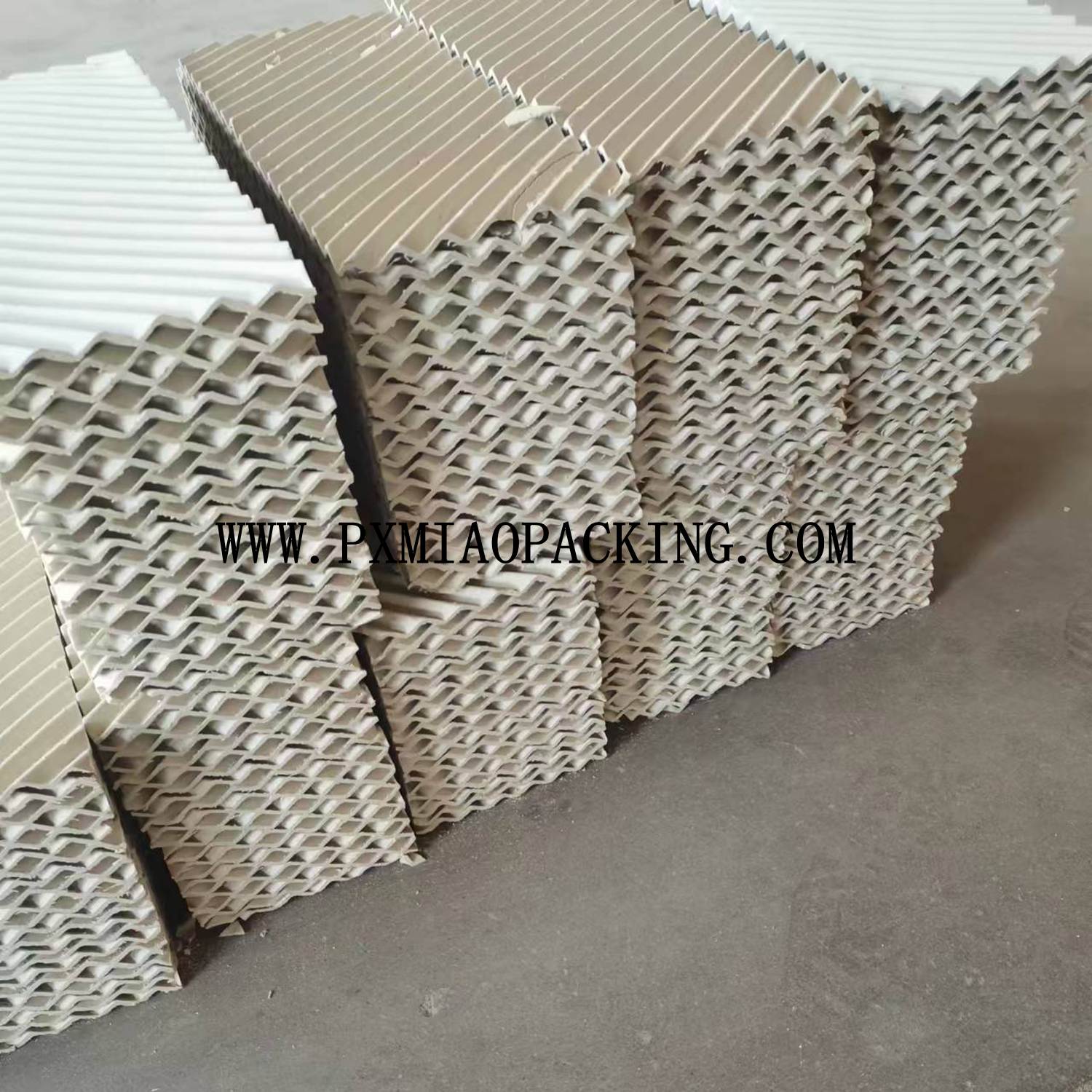

Ceramic corrugated packing is a new type of regular packing, which is composed of many packing units with the same geometry.It is much economic than metallic corrugated packing and can resist much higher temperature than plastic corrugated packing. Because of the unique structure of ceramics, with good hydrophilic properties, its surface can form a very thin liquid film turbulence and the inclined winding channel,which can promote the air flow but does not block the air flow so that the ceramic filler can match the metal packing, and its corrosion resistance, high temperature resistance can not be compared metal packing. The surface structure has good wetting performance, which can accelerate the flow of liquid and reduce the amount of filling stagnation liquid to the minimum. Thus reducing the chance of overheating, polymerization, and coking.
According to the different corrugated vertical inclination, it can be divided into X and Y. The inclination of X is 300 and Y is 450. The ceramic corrugated packing X type has a smaller pressure drop, while the Y type has better mass transfer performance. In order to balance the pressure drop and mass transfer performance, holes can be opened on the plates. Because the corrugated packing filler has no obvious amplification effect, its surface roughness and the material unique corrosion resistance characteristics,the corrugated packing filler are widely used in the distillation, steam extraction, absorption, extraction and other mass transfer process of petrochemical industry.
The main characteristics data of X and Y type
| Type | Surface area m2/m3 | Bulk Density kg/ m3 | Porasisty % | inclination | Pressure drop mmHg/m | No.of Theoretical plate m-1 | Hydraulic Dia mm | Fluid load m3/m2h | F factor m/s (kg/m3)-1 |
| 125Y | 125 | 320 | 90 | 450 | 1.8 | 1.8 | 28 | 0.2-100 | 3.0 |
| 160Y | 160 | 370 | 85 | 450 | 2 | 2 | 15 | 0.2-100 | 2.8 |
| 250Y | 250 | 420 | 80 | 450 | 2 | 2.5 | 12 | 0.2-100 | 2.6 |
| 350Y | 350 | 470 | 78 | 450 | 2.5 | 2.8 | 10 | 0.2-100 | 2.5 |
| 400Y | 400 | 500 | 75 | 450 | 3 | 3 | 8 | 0.2-100 | 2.0 |
| 450Y | 450 | 520 | 72 | 450 | 4 | 4 | 7 | 0.2-100 | 1.8 |
| 550Y | 550 | 620 | 74 | 450 | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
| 700Y | 700 | 650 | 72 | 450 | 6 | 7 | 5 | 0.15-100 | 1.3 |
| 100X | 100 | 280 | 92 | 300 | 1.5 | 1 | 30 | 0.2-100 | 3.5 |
| 125X | 125 | 300 | 90 | 300 | 1.8 | 1.5 | 28 | 0.2-100 | 3.2 |
| 160X | 160 | 350 | 85 | 300 | 2 | 1.8 | 15 | 0.2-100 | 3.0 |
| 250X | 250 | 380 | 80 | 300 | 2.5 | 2.3 | 12 | 0.2-100 | 2.8 |
| 350X | 350 | 450 | 78 | 300 | 3 | 2.5 | 10 | 0.2-100 | 2.6 |
| 400X | 400 | 480 | 75 | 300 | 4 | 2.8 | 8 | 0.2-100 | 2.2 |
| 450X | 450 | 500 | 72 | 300 | 4.5 | 3-4 | 7 | 0.2-100 | 2.0 |
| 470X | 470 | 440 | 75 | 300 | 5 | 5 | 7 | 0.2-100 | 1.8 |
| 550X | 550 | 620 | 74 | 300 | 5.5 | 5.5 | 6 | 0.18-100 | 1.4 |
| 700X | 700 | 650 | 72 | 300 | 6 | 6 | 5 | 0.15-100 | 1.3 |
Advantage
1. Large circulation: the design of the new tower can reduce the diameter of the tower, and the transformation of the old tower can greatly increase the processing capacity;
2. High separation efficiency: much larger specific surface area than bulk packing;
3. Pressure reduction: it can save a lot of energy, has large operation flexibility, the amplification effect is not obvious;
4. Suitable for various tower diameter;
5. Strong resistance to acid, alkali, especially H2S, cyclic alkalenic acid chloride ion corrosion
Main Application
1. Distillation of halogenated organic compounds.
2. Distillation and absorption of corrosive mixtures with strict requirements for the pressure drop and the number of theoretical plates.
3. In the tower with sulfuric acid absorption, nitric acid extraction and gas purification in fertilizer plants.
4. Vacuum operation starting from 100Pa.
5. As heat exchanger, defister or catalyst carrier, etc
