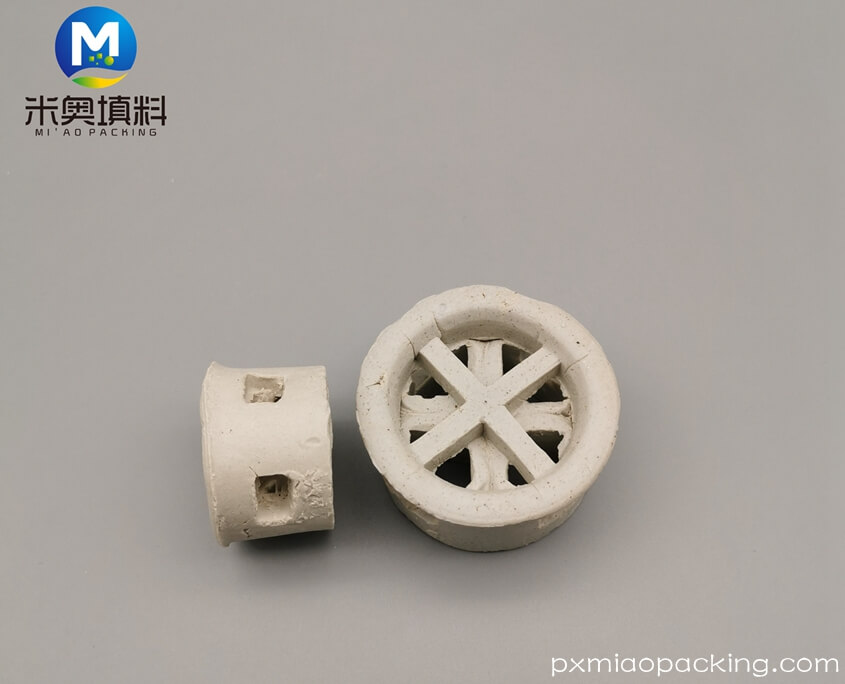

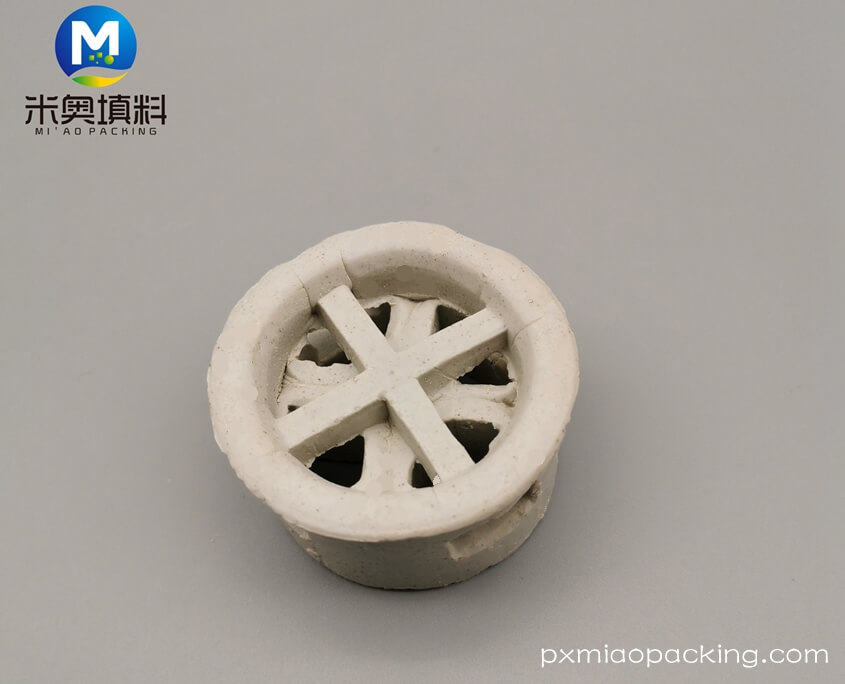

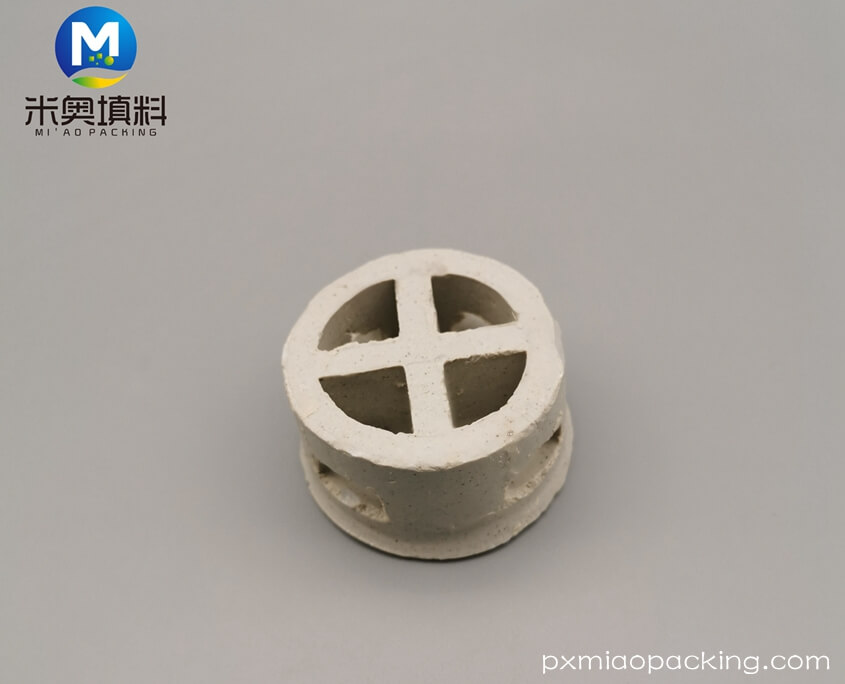

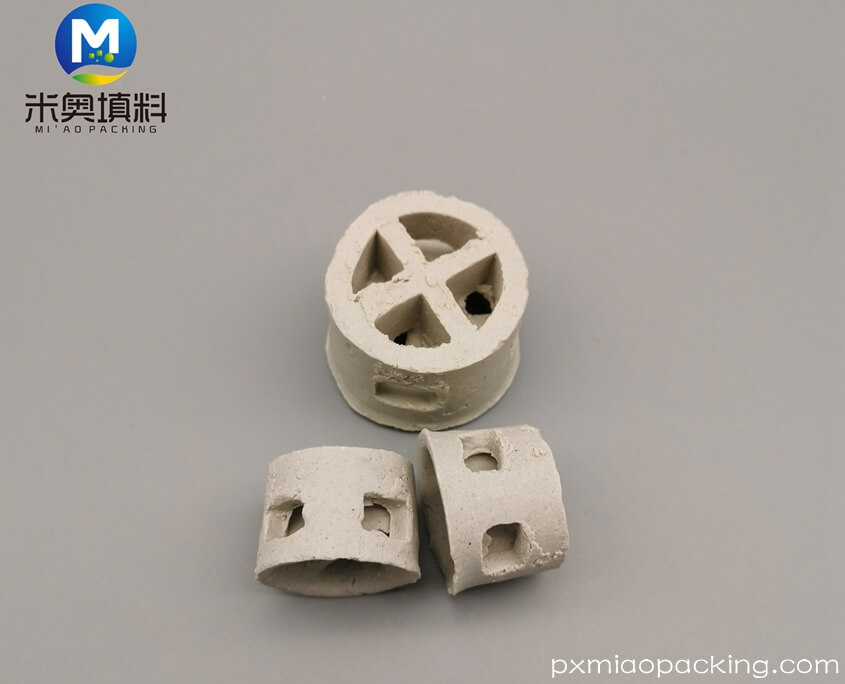

Ceramic Cascade Mini Ring
Cascade Mini Ring high-performance random packing provides significant capacity advantages and lower pressure drop than other random packing. These high-performance random packing has consistently demonstrated capacity improvements of up to 15% in a variety of applications without loss of efficiency. Superior mechanical integrity allows processors to specify deep beds without packing deformation.
Both high performance packing is available in several sizes and virtually any metallic material. Cascade Mini Ring random packing is the most advanced random packing designs offered today.
Advantage
Lower pressure drop
Higher capacity
Better fouling resistance
High efficiency
Introduction:
Cascade Mini Ring high-performance random packing provides significant capacity advantages and lower pressure drop than other random packing. These high-performance random packing has consistently demonstrated capacity improvements of up to 15% in a variety of applications without loss of efficiency. Superior mechanical integrity allows processors to specify deep beds without packing deformation.
Both high performance packing is available in several sizes and virtually any metallic material. Cascade Mini Ring random packing is the most advanced random packing designs offered today.
Advantage
Lower pressure drop
Higher capacity
Better fouling resistance
High efficiency
Specification data
| Spec | D*H*T (mm) | Surface area (m²/m³) | Free volume (%) | Number per m³ | Bulk density (Kg/m³) | Dry Packing Factor(m-1) |
| Dia25 | 25*20*3 | 270 | 74 | 74000 | 624 | 172 |
| Dia50 | 50*30*5 | 108.8 | 78.7 | 9091 | 516 | 223 |
| Dia76 | 76*45*7 | 63.4 | 79.5 | 2517 | 426 | 126 |
Package
Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallets with 1cbm /pallet
Warranty:
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
MOQ: min.1ton
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
