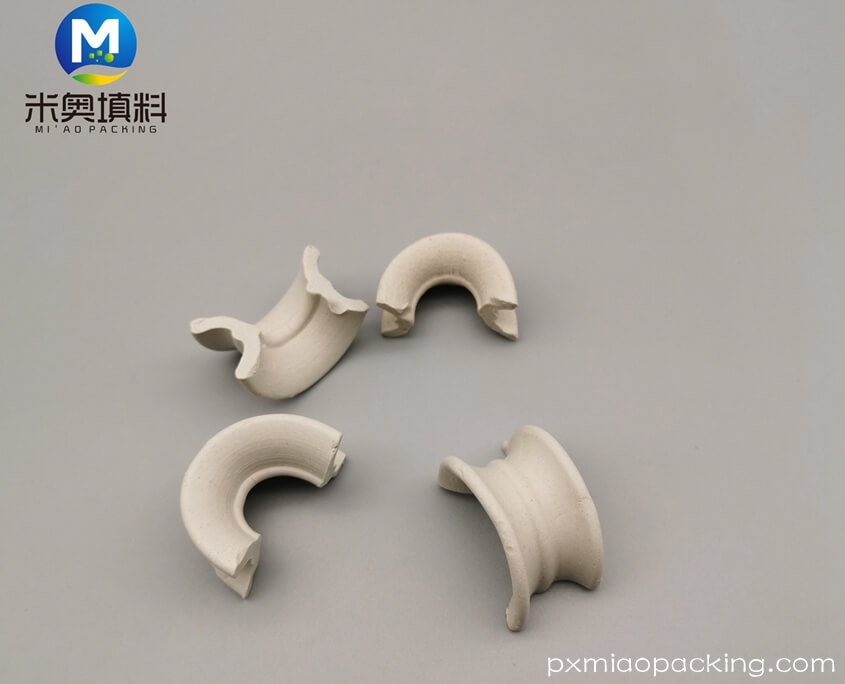

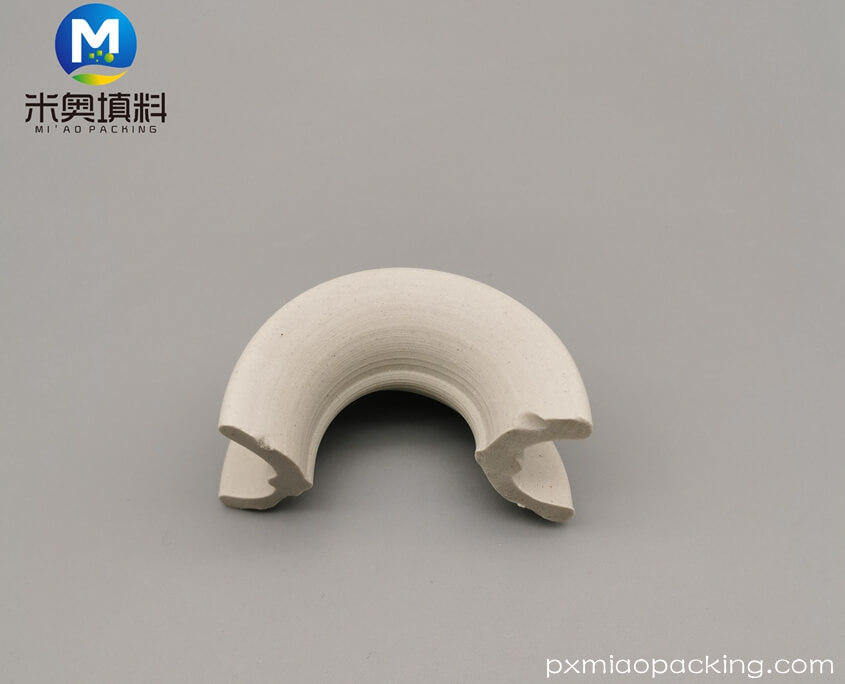

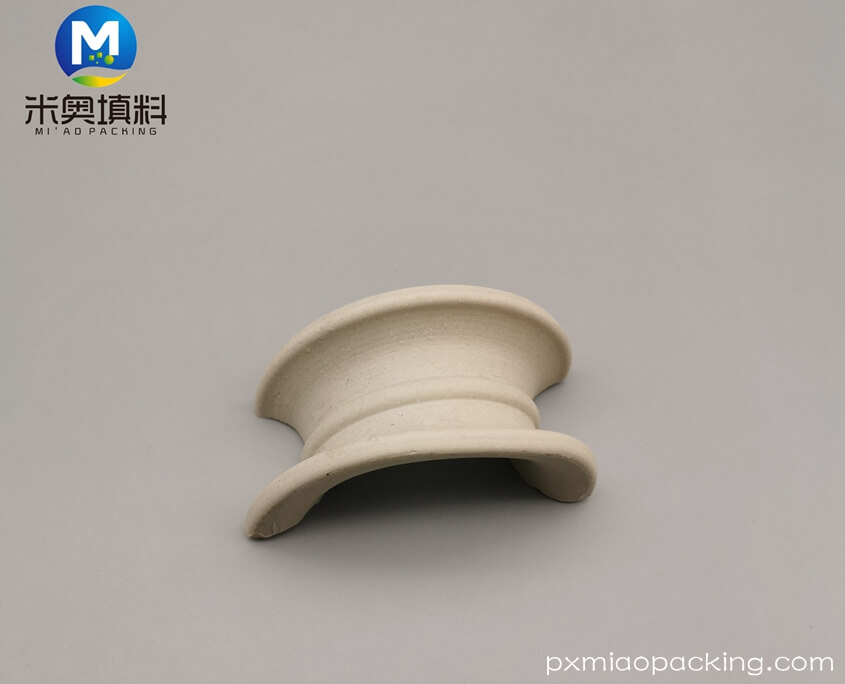

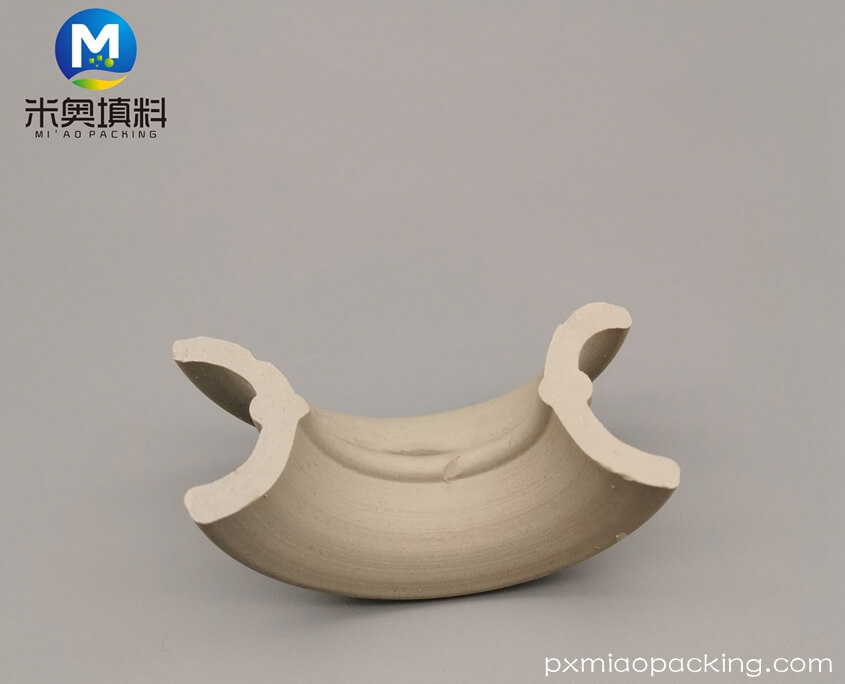

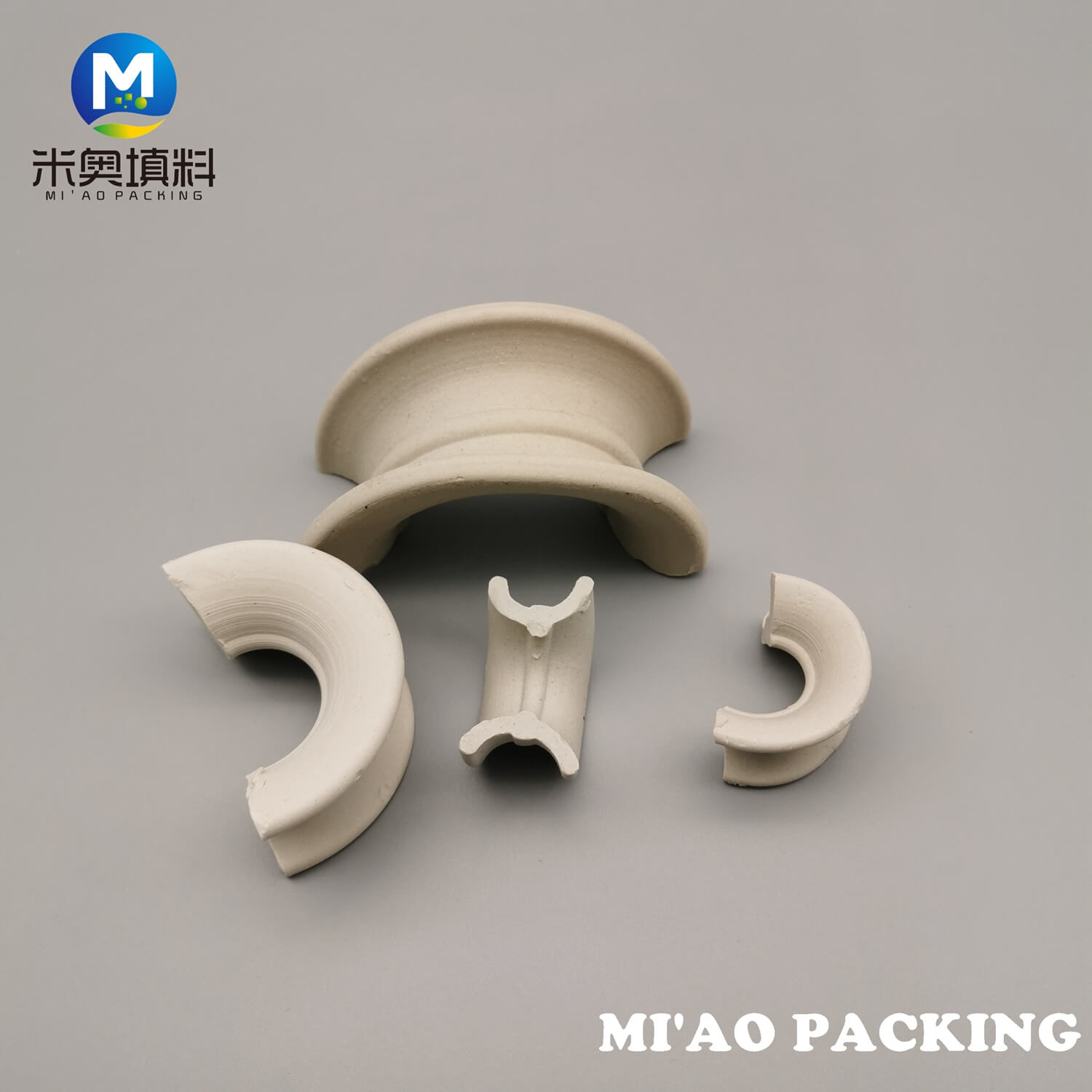

Ceramic Intalox Saddle
Ceramic intalox saddle rings are most frequently used high-performance packing and exhibit advantages for most applications in comparison with other shapes. Their smooth surface imparts a high chemical resistance and provides Ceramic intalox saddle rings with a high level of stability. Due to their simple form, ceramic saddles can be produced at a relatively low cost. Ceramic Intalox saddle rings are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers.
Application
Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Package
Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallets with 1cbm /pallet
Introduction:
Ceramic intalox saddle rings are most frequently used high-performance packing and exhibit advantages for most applications in comparison with other shapes. Their smooth surface imparts a high chemical resistance and provides Ceramic intalox saddle rings with a high level of stability. Due to their simple form, ceramic saddles can be produced at a relatively low cost. Ceramic Intalox saddle rings are widely used as Regenerative Thermal oxidizers, Acid Gas Scrubbers, Dryer Towers, Tail Gas Scrubbers and Impasse Towers.
Application
Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Specifications of Ceramic Saddles
| Normal Size | Diameter of Deck (mm) | Outside Diameter (mm) | Height (mm) | Wall thickness (mm) | Width (mm) | |
| 1/2″ | 12mm | 12±1.0 | 20±1.4 | 10±1.0 | 2.0±0.45 | 10±2.0 |
| 5/8″ | 16mm | 16±1.0 | 24±1.5 | 12±1.0 | 2.0±0.5 | 12±2.0 |
| 3/4″ | 19mm | 19±1.5 | 28±2.0 | 14±1.0 | 2.5±0.5 | 14±2.0 |
| 1″ | 25mm | 25±1.5 | 38±2.0 | 19±1.0 | 3.0±0.5 | 20±2.0 |
| 1.5″ | 38mm | 38±2.0 | 60±3.0 | 30±1.5 | 4.0±1.0 | 30±2.5 |
| 2″ | 50mm | 50±2.5 | 80±4.0 | 40±2.0 | 5.0±1.0 | 40±3.0 |
| 3″ | 76mm | 76±4.0 | 114±4.0 | 57±3.0 | 9.0±1.0 | 57±4.0 |
Chemical composition of Ceramic Saddles
| SiO2 | Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
| >73% | 17-23% | <1.0% | <0.5% | <0.5% | 2-4% | <0.1% |
Physical properties of Ceramic Saddles
| Nominal size | 1/2″ | 5/8″ | 3/4″ | 1″ | 1.5″ | 2″ | 3″ |
| 12mm | 16mm | 19mm | 25mm | 38mm | 50mm | 76mm | |
| Number per m3 | 610,000 | 269,000 | 146,000 | 59,000 | 19,680 | 8,243 | 2,400 |
| Package density (kg/m3) | 780 | 700 | 670 | 630 | 580 | 550 | 530 |
| Free volume (%) | 68 | 71 | 75 | 77 | 80 | 79 | 75 |
| Surface area (m2/m3) | 647 | 535 | 350 | 254 | 180 | 120 | 91 |
| Specific gravity (g/cm3) | 2.3 | ||||||
| Water absorption (%) | <0.3 | ||||||
| Acid resistance (%) | >99.6 | ||||||
| Max operating temp | 1100℃ | ||||||
| Porosity (%) | <1 | ||||||
| Moh’s hardness (scale) | >6.5 | ||||||
| Thermal conductivity (w/m.k) | 0.9-1.0 | ||||||
| Specific heat (j/kg℃) | 850-900 | ||||||
Package
Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallets with 1cbm /pallet
Warranty:
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
MOQ: min.1ton
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
