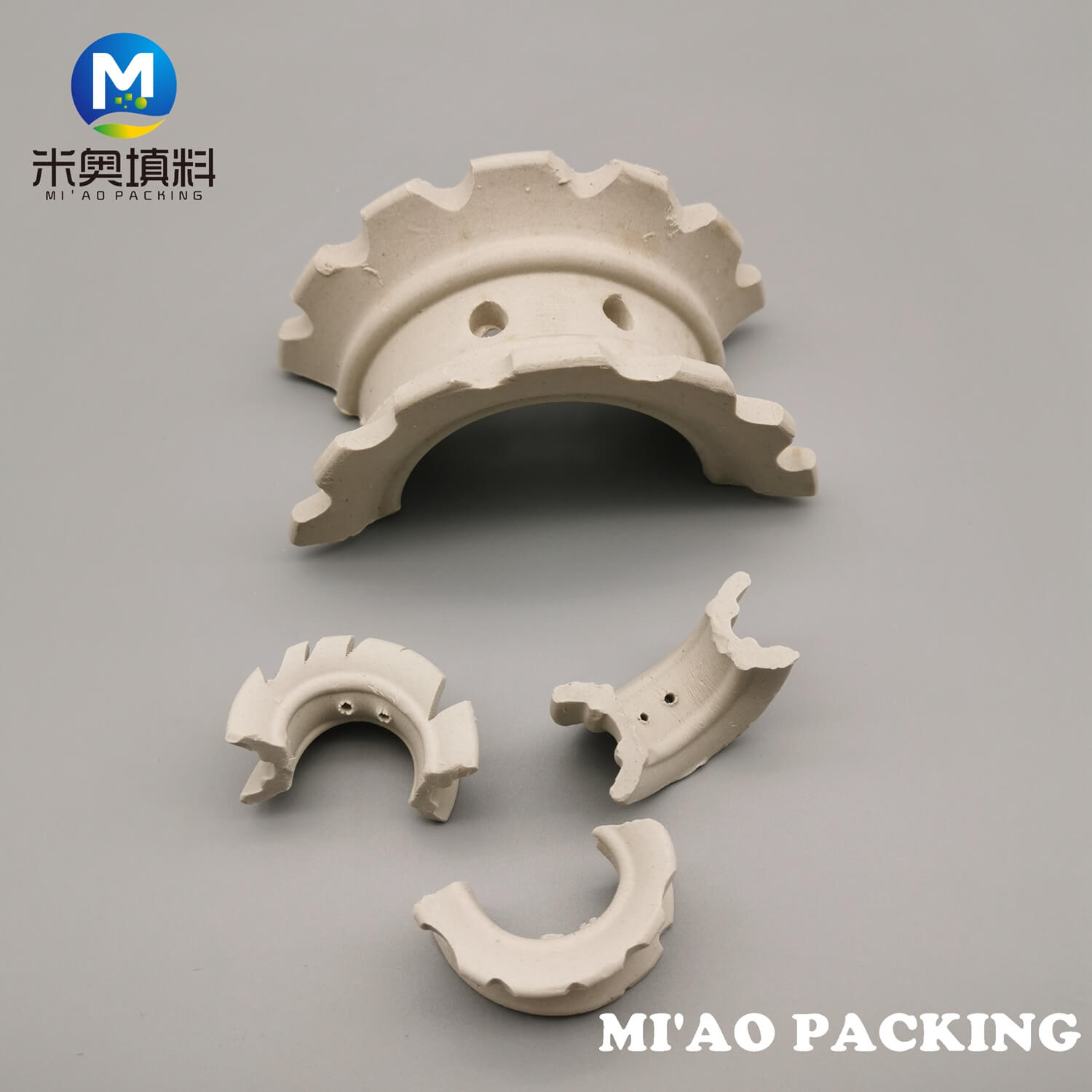

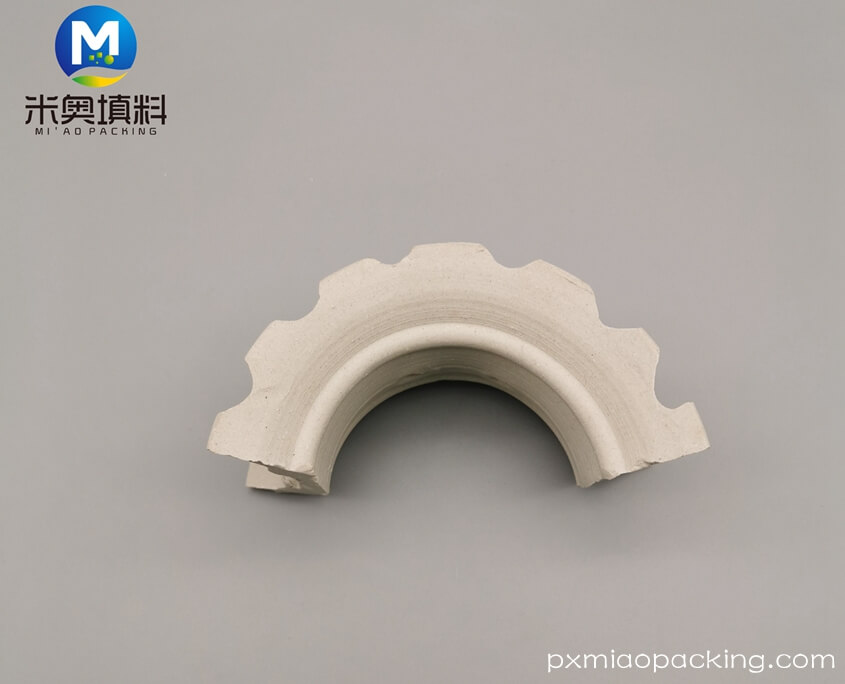

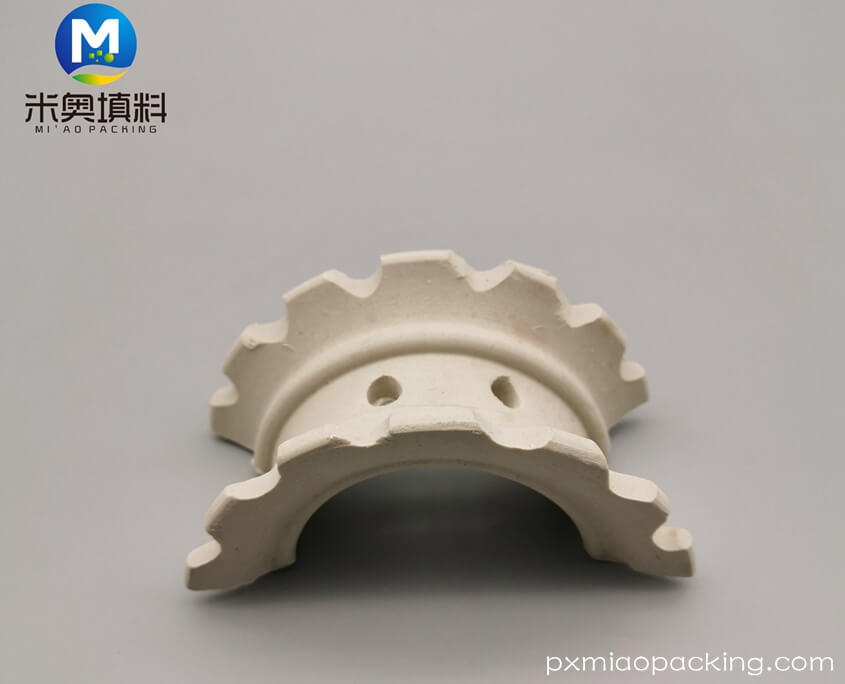

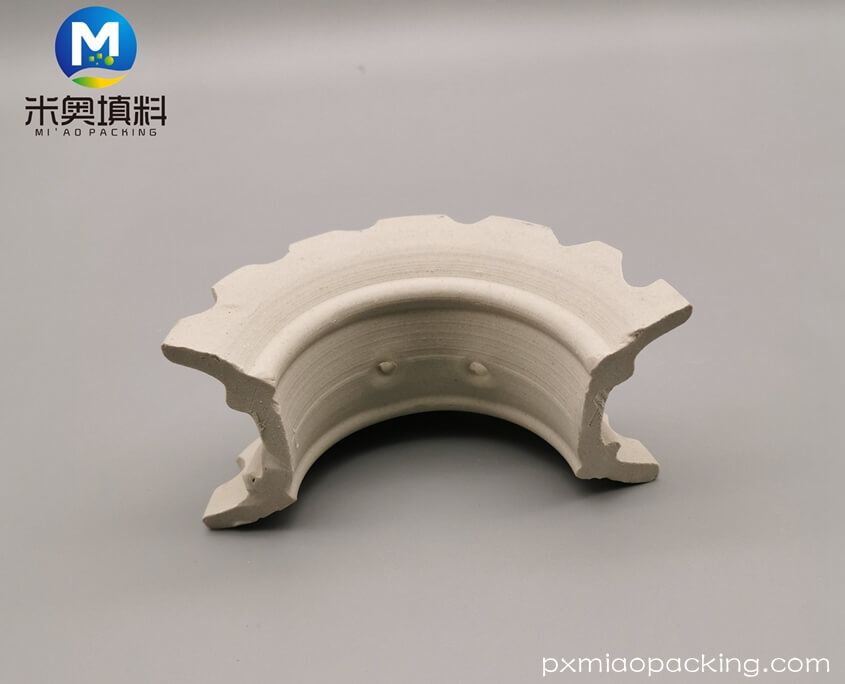

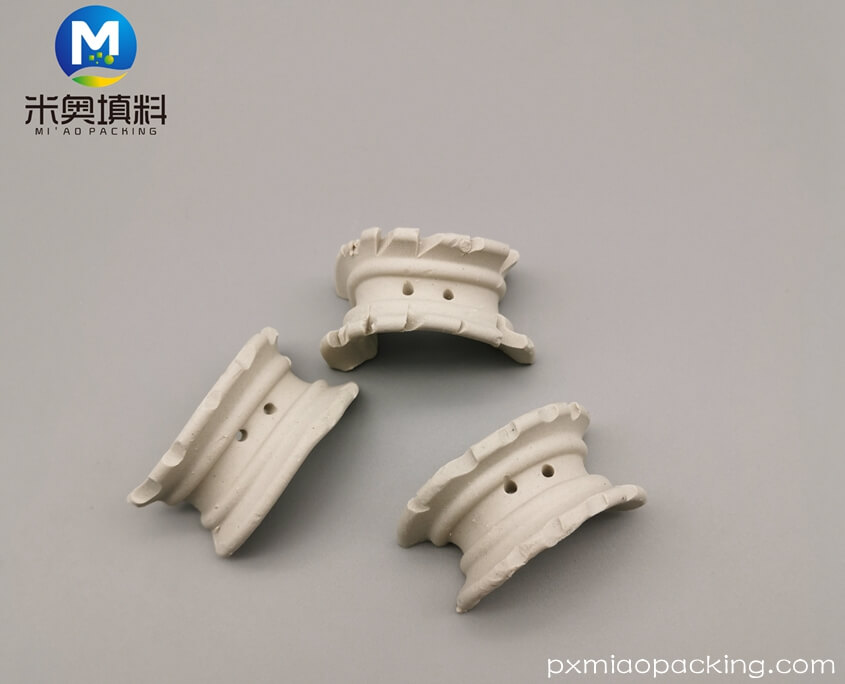

Ceramic Supper Saddle
Ceramic Super Intalox saddles rings are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes. Ceramic super saddles’ smooth surface imparts a high chemical resistance and provides them with a high level of stability. Due to their simple form, Ceramic Super Intalox saddles can be produced at a relatively low cost.
Package
Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallets with 1cbm /pallet
MOQ: min.1ton
Warranty
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
Introduction:
Ceramic Super Intalox saddles rings are the most frequently used high-performance packing which exhibit advantages for most applications in comparison with other packing of different shapes. Ceramic super saddles’ smooth surface imparts a high chemical resistance and provides them with a high level of stability. Due to their simple form, Ceramic Super Intalox saddles can be produced at a relatively low cost.
Application
Used in high or low temperature conditions.
Used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Specification
| Normal Size | Approx.Weight | Surface Area | Void Fraction | Dry Packing Factor | |||
| lb/ft3 | Kg/m3 | ft2/ft3 | m2/m3 | (%) | (m-1) | ||
| 1″ | 25mm | 40 | 645 | 79.5 | 260 | 77 | 570 |
| 1.5″ | 38mm | 37.5 | 600 | 64 | 210 | 78 | 430 |
| 2″ | 50mm | 35.6 | 570 | 42.8 | 140 | 79 | 277 |
Chemical Composition
| SiO2 | Al2O3 | Fe2O3 | CaO | MgO | K2O+Na2O | Other |
| >73% | 17-23% | <1.0% | <0.5% | <0.5% | 2-4% | <0.1% |
Physical Properties
| Index | Unit | Value |
| Porosity | Vol % | 1 |
| Specific heat | KJ/Kg | 840-900 |
| Crush strength | N/mm2 | 390-420 |
| Specific gravity | g/cm3 | 2.3-2.45 |
| Acid Resistance | % | 99.98 |
| Firing temperature | ℃ | 1280 to 1320 |
| Softening point | ℃ | >1400 |
| Density | Kg/m3 | 2300-2400 |
| Water absorption | % | <0.2 |
| Thermal Expansion | 10-6mm/mm℃ | 4.7 |
| Hardness | Mohr Scale | 7-8 |
| Comprehensive strength | Newtons | 5600 |
| Shock strength | Kgf.cm/cm2 | 1.0-1.5 |
Package
Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallets with 1cbm /pallet
Warranty:
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
MOQ: min.1ton
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
