Honeycomb Ceramic Catalyst Substrate

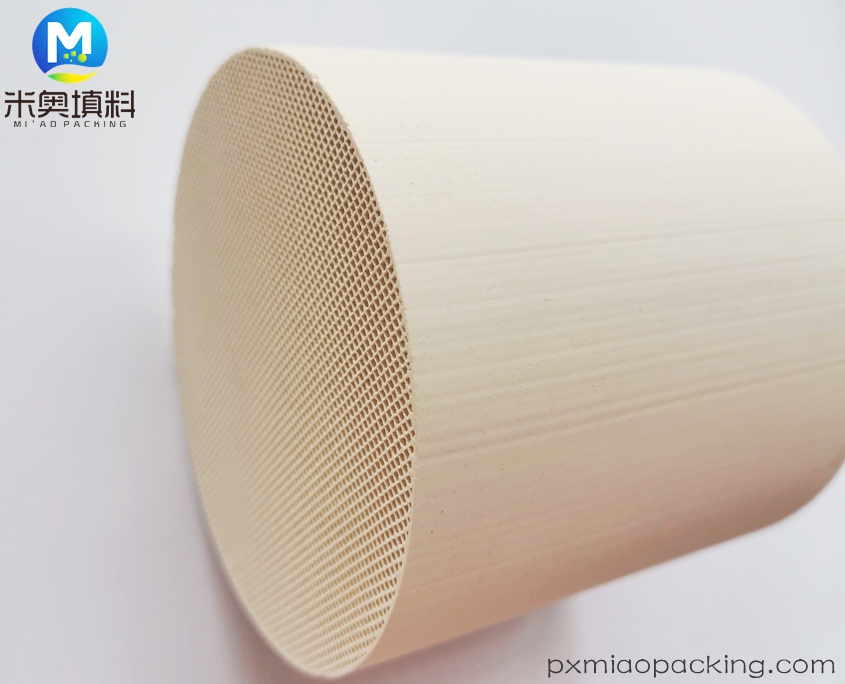

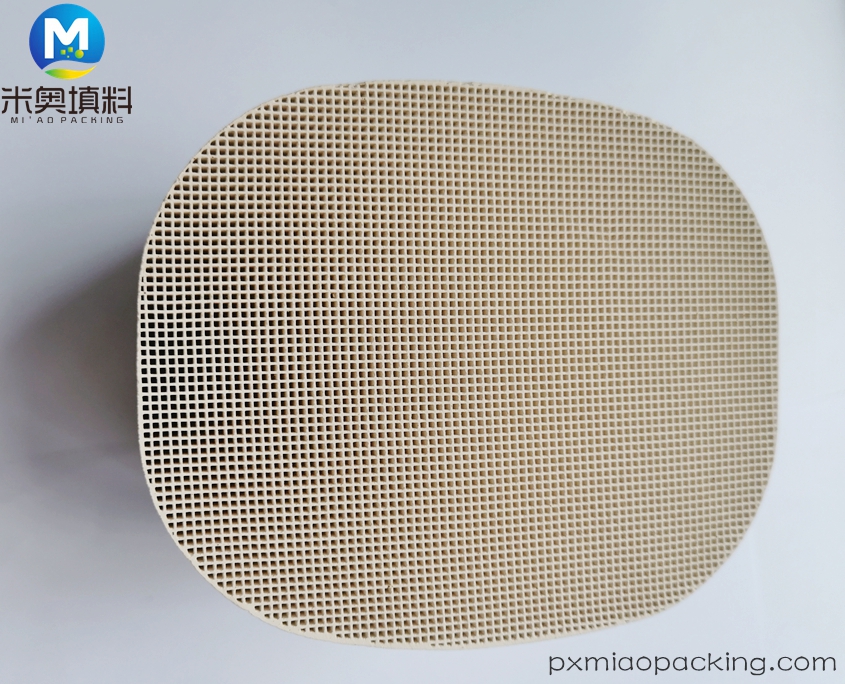

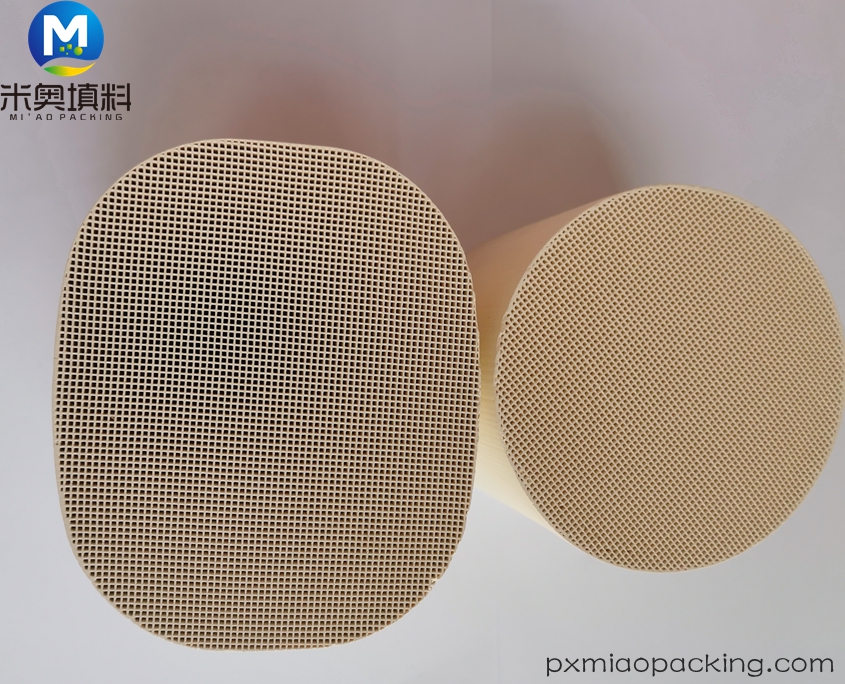

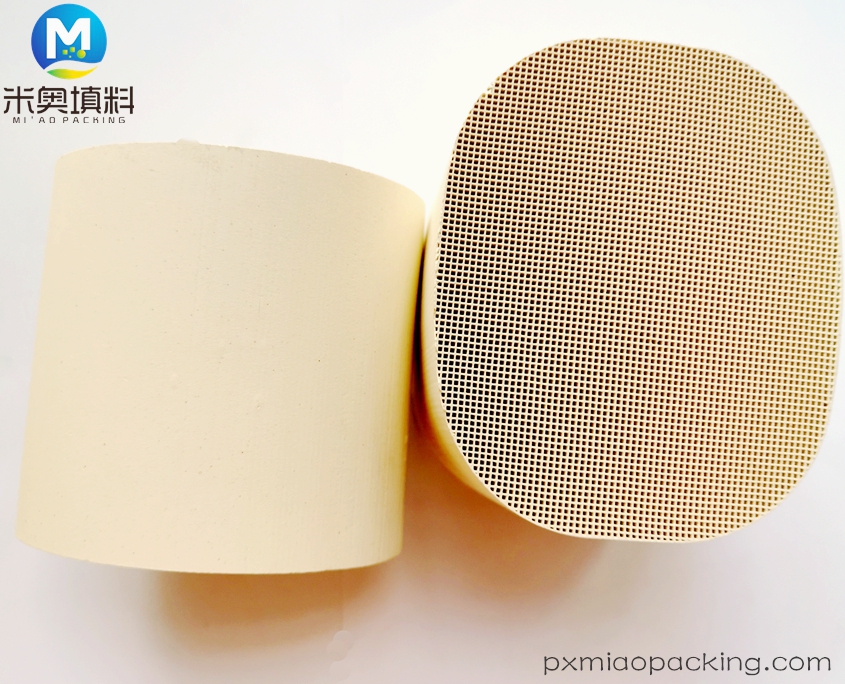

Honeycomb ceramic catalyst substrate is used for gasoline vehicle catalyst converter of the exhaust gas purification treatment after coating catalyst. It can catalyze and purify the exhaust. The main material of the honeycomb ceramic catalyst substrate is cordierite. It can catalyze and purify the exhaust gas of the vehicle. We could provide 300cpsi, 400cpsi, 600cpsi honeycomb ceramic catalyst substrate. The height is within 200mm. The shape of the cross section could be round shape, ellipse shape, runway shape, pear shape or other shapes as per requirement of customers.
Introduction:
Honeycomb ceramic catalyst substrate is used for gasoline vehicle catalyst converter of the exhaust gas purification treatment after coating catalyst. It can catalyze and purify the exhaust. The main material of the honeycomb ceramic catalyst substrate is cordierite. It can catalyze and purify the exhaust gas of the vehicle. We could provide 300cpsi, 400cpsi, 600cpsi honeycomb ceramic catalyst substrate. The height is within 200mm. The shape of the cross section could be round shape, ellipse shape, runway shape, pear shape or other shapes as per requirement of customers.
The features of the cordierite honeycomb ceramic catalyst carrier as below
Thin hole wall
Large surface area
Low back pressure
Small coefficient of thermal expansion
Good thermal impact resistance and good thermal shock resistance
Good matching with various catalyst active composition
Good performance of cold start
Low starting ignition temperature
High speed of temperature raise
Low air resistance
High conversion efficiency
Specification and Size
| CPSI | Hole wall | Hole size | Hole area | Hole ratio | Surface area | Bulk density |
| 300 | 0.25mm | 1.22mm | 1.48mm2 | 67% | 2200m2/m3 | 500kgs/m3 |
| 300 | 0.22mm | 1.25mm | 1.55mm2 | 70% | 2260m2/m3 | 500kgs/m3 |
| 300 | 0.19mm | 1.28mm | 1.63mm2 | 74% | 2310m2/m3 | 500kgs/m3 |
| 400 | 0.23mm | 1.04mm | 1.08mm2 | 67% | 2579m2/m3 | 480kgs/m3 |
| 400 | 0.20mm | 1.07mm | 1.75mm2 | 71% | 2654m2/m3 | 480kgs/m3 |
| 400 | 0.17mm | 1.10mm | 1.21mm2 | 75% | 2728m2/m3 | 480kgs/m3 |
| 600 | 0.23mm | 0.81mm | 0.65mm2 | 61% | 3002m2/m3 | 580kgs/m3 |
| 600 | 0.20mm | 0.84mm | 0.70mm2 | 65% | 3114m2/m3 | 580kgs/m3 |
| 600 | 0.17mm | 0.87mm | 0.75mm2 | 70% | 3225m2/m3 | 580kgs/m3 |
Chemical composition
| Item | Stoneware | Cordierite | Mullite-cordierite | Mullite |
| SiO2 % | 69-71 | 46-48 | 45-50 | 27-28 |
| Al2O3 % | 18-30 | 34-37 | 45-50 | 70-71 |
| MgO % | 0.15-0.20 | 12.0-14.0 | 6.0-9.0 | — |
| K2O+Na2O+CaO % | 3.3-3.3 | 2.5-2.9 | 0.7-0.9 | 0.8-1.2 |
| Fe2O3 % | 0.7-0.9 | 0.7-0.9 | 0.5-0.7 | 0.5-0.7 |
| TiO2+BaO % | 0.2-0.25 | 0.3-0.4 | — | — |
Physical and chemical property
| Item | 200 cpsi | 400cpsi | |
| Compressive strength MPa |
A Axis | 15.0 | 15.0 |
| B Axis | 1.5 | 1.5 | |
| C Axis | 0.2 | 0.2 | |
| Water absorption % |
Min | 18.6 | 17.8 |
| Max | 23.4 | 20.7 | |
| Average | 22.1 | 19.6 | |
| Pore volume | Cm3/g | 0.18-0.24 | 0.18-0.24 |
| Thermal expansivity | 20-1000℃ 10-6/K | 1.5 | 1.8 |
| Thermal conductivity | 25-600℃ W/m.K | 1.5-1.6 | |
| Specific heat J/g.K |
100℃ | 0.80 | 1.5-1.6 |
| 200℃ | 0.95 | 0.95 | |
| 300℃ | 2.0 | 2.0 | |
| Soften temp. | ℃ | 1380 | 1380 |
| Continuous high-temp. Durability % (After 100 hours) |
1200℃ | 0.5 | 0.1 |
| 1450℃ | 2.0 | 2.5 | |
| Heat consumption rate ℃/min | 20-1000℃ | 5.0 | 5.0 |
Package
Generally, we pack with paper card and put them into the wooden case. Normally there is 1 cbm in each wooden case.
There are 20 cbm / 20gp and 44 cbm / 40gp or 40hq
FAQ
1.Can you provide free samples?
We can provide free samples with 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 10 days after we get the deposit
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
