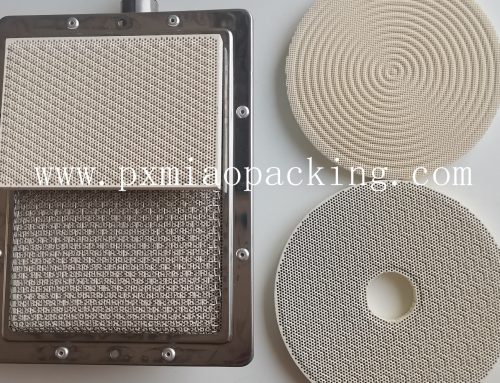

Infrared honeycomb ceramic burner is widely used in heating, baking and cooking equipment. Its special spare part is infrared honeycomb ceramic plate. The main material of infrared honeycomb ceramic burner plate is cordierite.
Infrared honeycomb ceramic burner plate is very popular due to the advantage of fast speed of heating, strong fire and high temperature.What is the difference between infrared honeycomb ceramic burner and traditional atmospheric gas stove? We have done some test and analyst as below.
The working principle of infrared honeycomb ceramic burner
The main material of infrared honeycomb ceramic burner plate is Cordierite. The plate is normally round or square shape. For square shape, there are many standard sizes according to the stove size and special requirement of customers.The hole size is normally dia1.0mm, dia1.25mm, dia1.38mm, dia1.45mm or we can design other size as per customer’s special requirement.

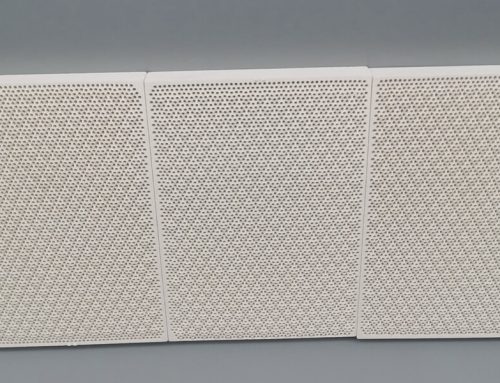

The common standard sizes as below for square shape.
| Diamond(mm) | 134*92*13, 150*135*13 132*92*13 134*94*13 185*63*13 131*131*13 |
162*60*13 128*88*13 129*74*13 135*190*13 140*96/100 180*100*13 |
200*140*13 186*134*13 134*47*13 134*78*13 94*67*13 70*100*13 |
| 8 pattern(mm) | 172*123*13 132*87.5*13 144*73*13 139*110*13 |
88*132*13 164*74*13 162*72*13 132*92*13 |
180*130*13 140*95*13 145*142*13 145*118*13 |
| Plum blossom(mm) | 200*140*13 162*73*13 162*60*13 |
162*62*13 164*74*13 142*72*13 |
185*63*13 206*146*13 |

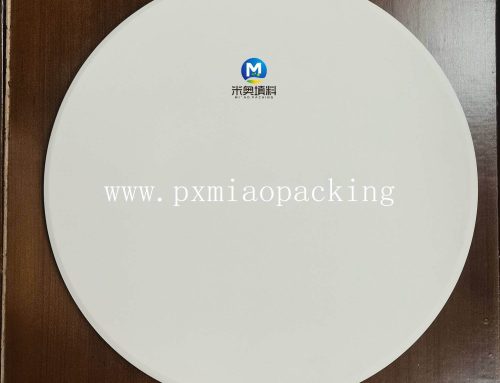

The infrared ceramic burner plate is usually round shape if used on cooker. The size is normally from Dia50mm to Dia320mm. The hole size is from dia0.8mm to dia1.3mm.
The popular sizes of the round shape infrared honeycomb ceramic cooker burner plate usually including followings
| Dia150mm | Dia154mm | Dia158mm | Dia160mm | Dia168mm | Dia170mm |
| Dia70mm | Dia90mm | Dia114mm | Dia120mm | Dia135mm | Dia145mm |
The working principle of the infrared honeycomb ceramic burner is as below
1.The gas ejected from the nozzle at some pressure
2.Injecting the full air required by burning
3.The gas and air are mixed in the injector and get into the case after the static pressure increased.Then it flows from the small hole with speed 0.1-0.14m/s and burns completely at the surface of the infrared honeycomb ceramic plate. The flame is very short or even out of sight. So it is also called non-flame burning. When burning, the honeycomb ceramic plate becomes red and the temperature is up to 850 ℃ to 900 ℃. The infrared way wave is normally about 2um.
Comparison of energy-saving effect of infrared gas stoves and atmospheric gas stove
In our live,most of the family change to use infrared honeycomb ceramic burner from atmosphere gas burner. Compared with the atmosphere gas burner, the infrared honeycomb ceramic burner has following advantage.
1.CO is decreased 54%
2.N is decreased 93% equally
3.Much higher heat efficiency
Why does the infrared honeycomb ceramic burner have higher heat efficiency than atmosphere gas stove?
1.It has higher heat transfer radiation
2.It has less heat loss caused by the smoke discharge.
3.It has less heat loss due to radiation
