Infrared honeycomb ceramic burning plate is one of our most popular products. It is widely used on BBQ grill, gas heater and family stove. The fuel is natural gas or liquid gas . It is small and portable so it always appears in outside party to prepare delicious foods for guests.
The material of the infrared honeycomb ceramic burning plate is cordierite. The main composition is Al2O3 and SiO2. Al2O3 content is about 36% and SiO2 content is about 49%. The ceramic plate has high capacity of thermal storage and heat resistance. So it can save at least 30% energy than normal stoves with no honeycomb ceramic plate.So it is widely exported to the whole world such as America, Peru, Chile, Argentina, Iran, Turkey, Germany, England,Japan, South Korea and so on.
We have about 100 sets of mold currently. Almost all size you need,we can produce.Also we can make new molds as per customers special requirements.If quantity can be up to 40000pcs,we will make new molds on free.Or when the quantity of the orders up to 40000pcs in total, we will return the mold fee or the mold fee paid by customer could pay for products.
Our most popular sizes as below,
132mm x 92mm x 13mm
134mm x 94mm x13mm
200mm x 140mm x 13mm
206mm x 146mm x 13mm
164mm x 74mm x 13mm
By now, we can provide more than 100 sizes. And we could also provide customized products.The production capacity is 10000pcs/mold per day.
The popular hole size is diameter 1.25mm, diameter 1.38mm and diameter 1.6mm
The thickness of the ceramic plate is from 12mm to 14mm
Package

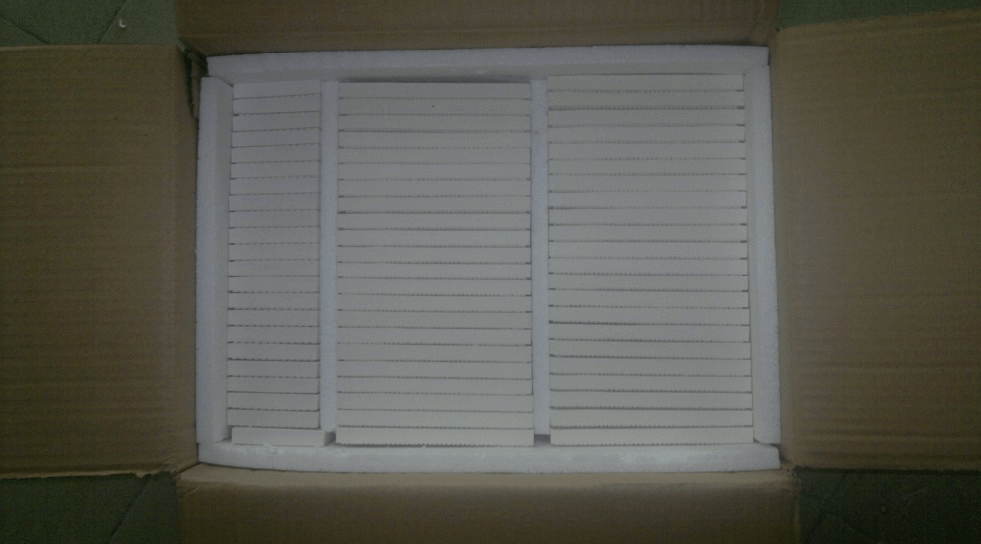

We usually pack the infrared honeycomb ceramic plate with cartons and there are one foam plate between pieces to prevent damage as below picture
Then we will put cartons in wooden case or on pallets.
Wooden cases 1
Wooden cases 2.
Pallet
For infrared honeycomb ceramic plate 132mm x 92mm x 13mm, we normally pack with 100pcs/carton and each package can load 7200pcs. So one 20 feet full container can load 72000pcs. The total net weight is 8600kgs. The delivery time is 15days.If 40 feet full container, it can load 158400pcs. The total net weight is 19000kgs.The delivery time is 30days.
We also produce round shape ceramic plate for family stove and mini stove. The diameter could from dia50mm to dia170mm. The hole shape is square or round. The most popular size is dia50mm, dia70mm, dia90mm, dia114mm, dia150mm, dia158mm,dia168mm and so on. Both of the size of the plate and hole could be customized.
All of our infrared honeycomb ceramic plate have gotten CE certificate. They are widely exported to European countries, North America and South America.
