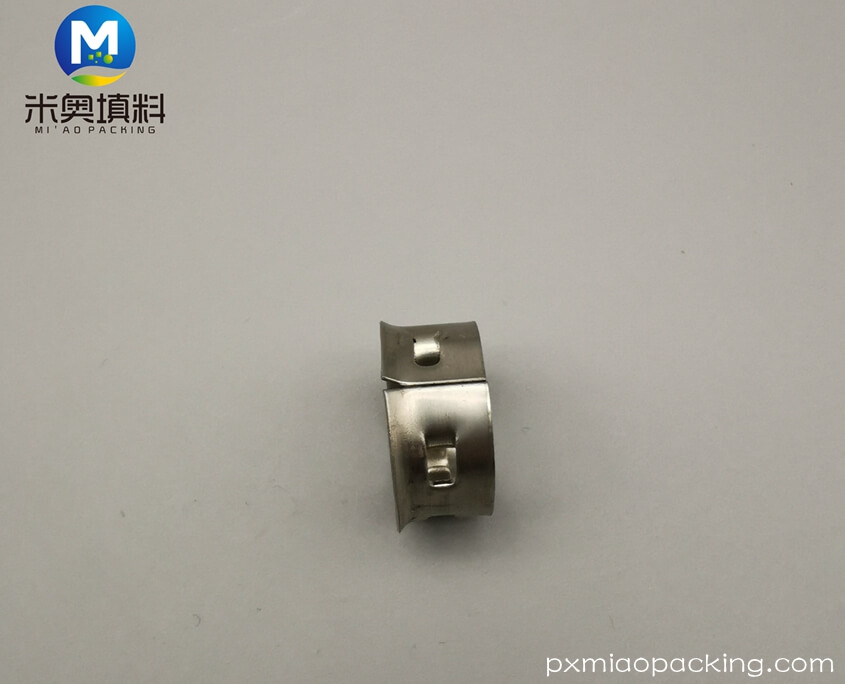

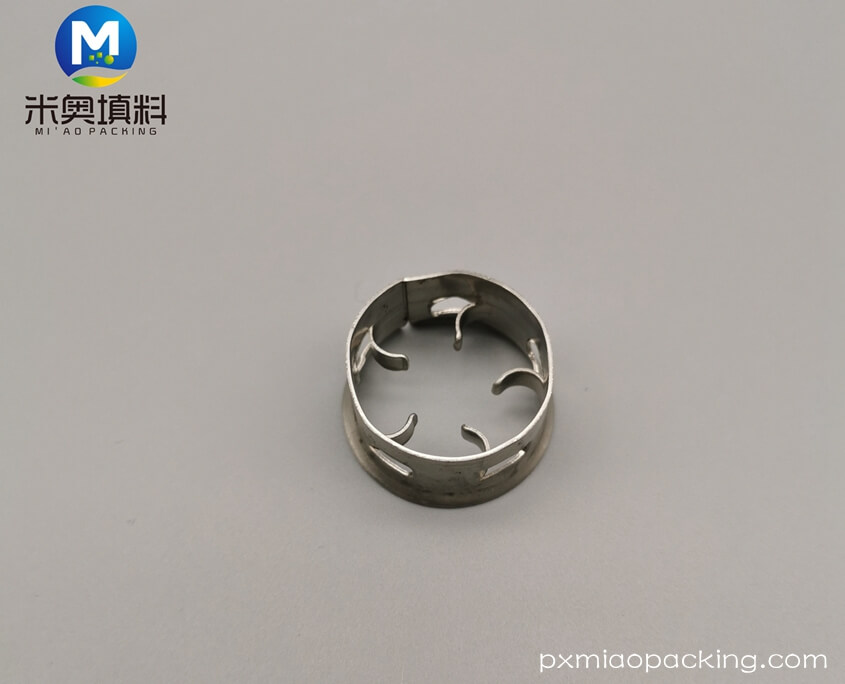

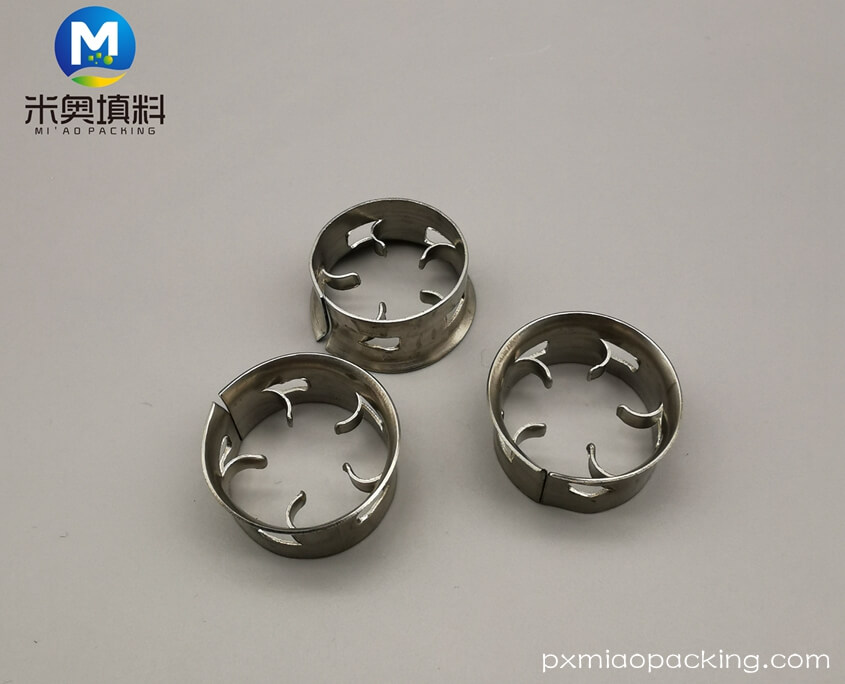

Metal Cascade Mini Ring
Introduction: Cascade mini ring has largest opening predominantly in the direction of the vapor/liquid flow which allows for easy passage, this reduces the pressure drop significantly.
Higher operational efficiency occurs because of the preferential orientation which ensures that in most of the ring surface are positioned vertically rather than horizontally, and this is also advantageous for mass transfer. High efficiency is dependent on as much of the available surface area as possible being effectively wet.
The underside of any horizontal surface in a packed bed or tower is naturally shielded from the liquid trickling down and is therefore not fully wet, such dry surfaces play little or no part in the mass transfer process. Cascade Mini Ring significantly reduces this effect, and therefore gives much higher plant operational efficiency.
Package
woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
Introduction:
Cascade mini ring has largest opening predominantly in the direction of the vapor/liquid flow which allows for easy passage, this reduces the pressure drop significantly.
Higher operational efficiency occurs because of the preferential orientation which ensures that in most of the ring surface are positioned vertically rather than horizontally, and this is also advantageous for mass transfer. High efficiency is dependent on as much of the available surface area as possible being effectively wet.
The underside of any horizontal surface in a packed bed or tower is naturally shielded from the liquid trickling down and is therefore not fully wet, such dry surfaces play little or no part in the mass transfer process. Cascade Mini Ring significantly reduces this effect, and therefore gives much higher plant operational efficiency.
Specification Data:
| Type | Specification | Surface | Free Vol | Number | Weight | Packing-Factor |
| mm | mm | M2/m3 | % | Pc./m3 | Kg/m3 | m-1 |
| Ø25 | 25*12.5*0.5 | 220 | 93 | 97160 | 383.5 | 273.5 |
| Ø38 | 38*19*0.8 | 154.3 | 94 | 31890 | 465.6 | 185.8 |
| Ø50 | 50*25*0.8 | 109.2 | 95 | 11600 | 323.9 | 127.4 |
| Ø76 | 76*38*1 | 73.5 | 97 | 3760 | 214.5 | 81 |
Popular material:
SUS304
SUS316L
Carbon Steel
Alloy etc.
Package
woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
