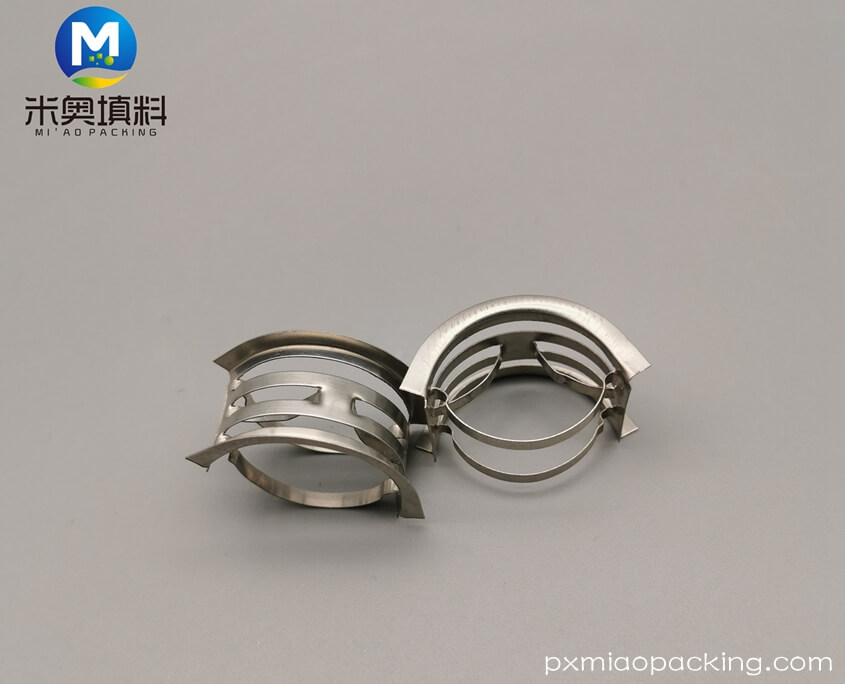

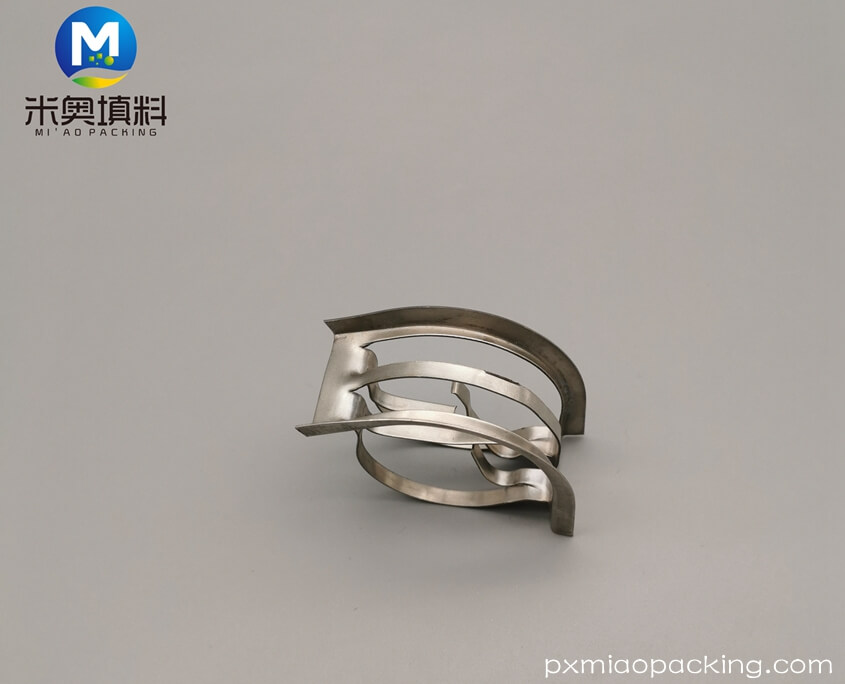

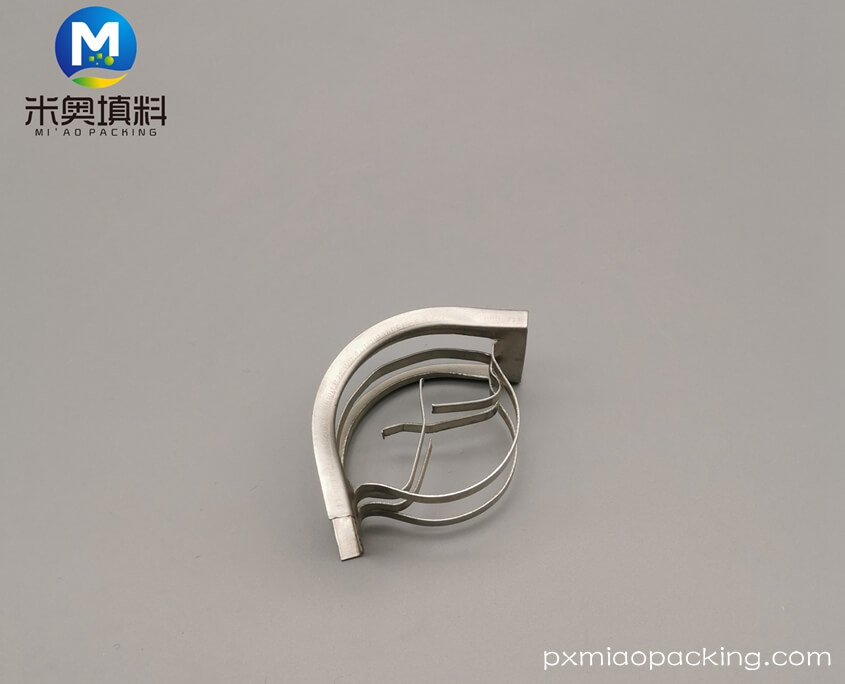

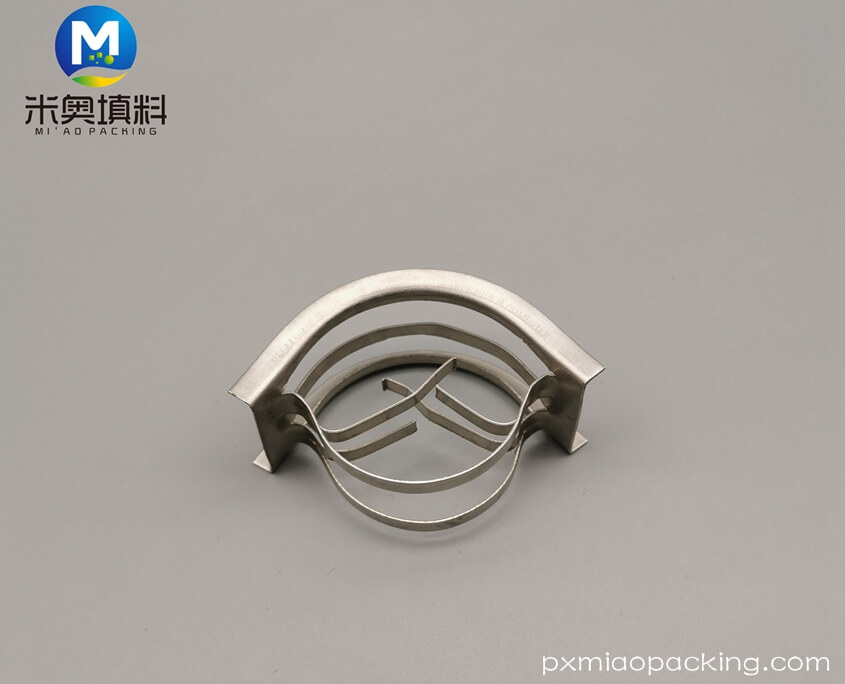

Metal Intalox Saddle Ring
It is shape between ring and saddle, its structure is benefit to distribution of gas-liquid, It has lower pressure drop, big flux, high efficiency，and it is used to distillation, gas absorption and so on. metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Popular material:
SUS304
SUS316L
Carbon Steel
Alloy etc.
Package
woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
Introduction:
It is shape between ring and saddle, its structure is benefit to distribution of gas-liquid, It has lower pressure drop, big flux, high efficiency，and it is used to distillation, gas absorption and so on. metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Technical Data:
| Specification | Number per volume | Specific area | Void Volume | Dry packing factor |
| D×H×δ mm | n/m3 | m2/m3 | % | |
| 25×20×0.5 | 108500 | 185 | 0.96 | 209.1 |
| 38×24×0.5 | 31500 | 140.4 | 0.968 | 126.6 |
| 50×28×0.8 | 11160 | 90.1 | 0.97 | 84.7 |
| 76×48×1 | 3320 | 57.6 | 0.97 | 63.1 |
Popular material:
SUS304
SUS316L
Carbon Steel
Alloy etc.
Package
woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
