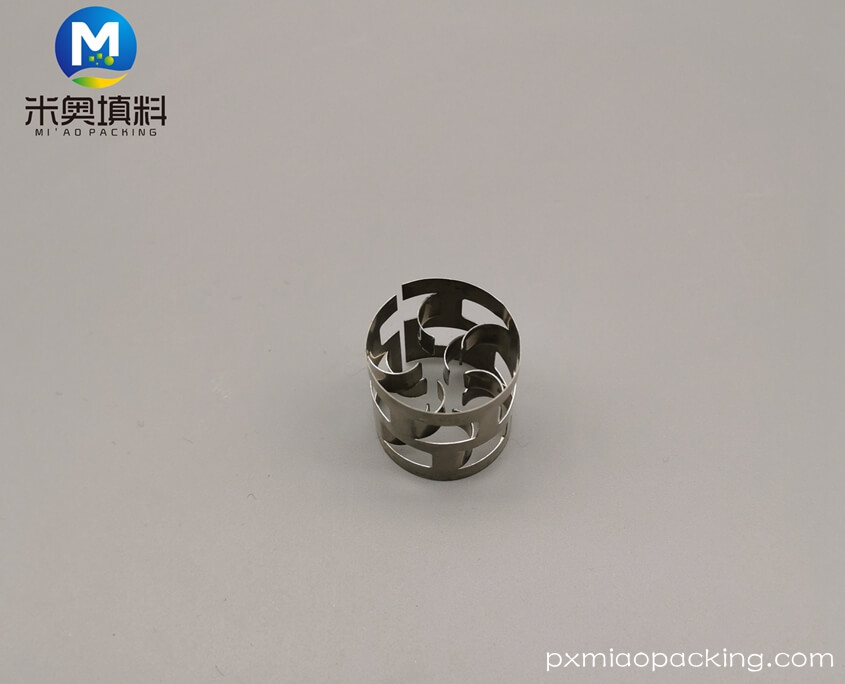

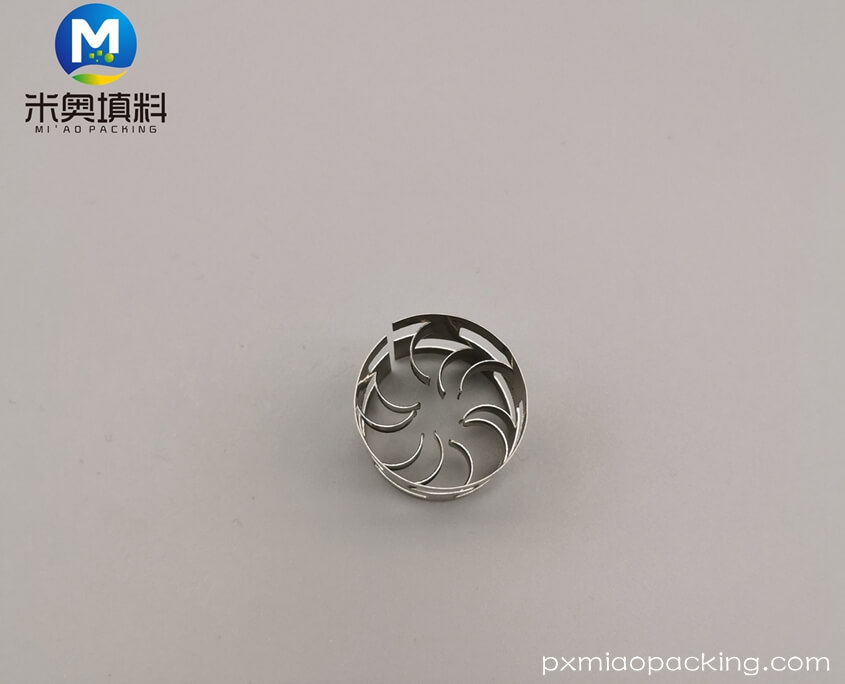

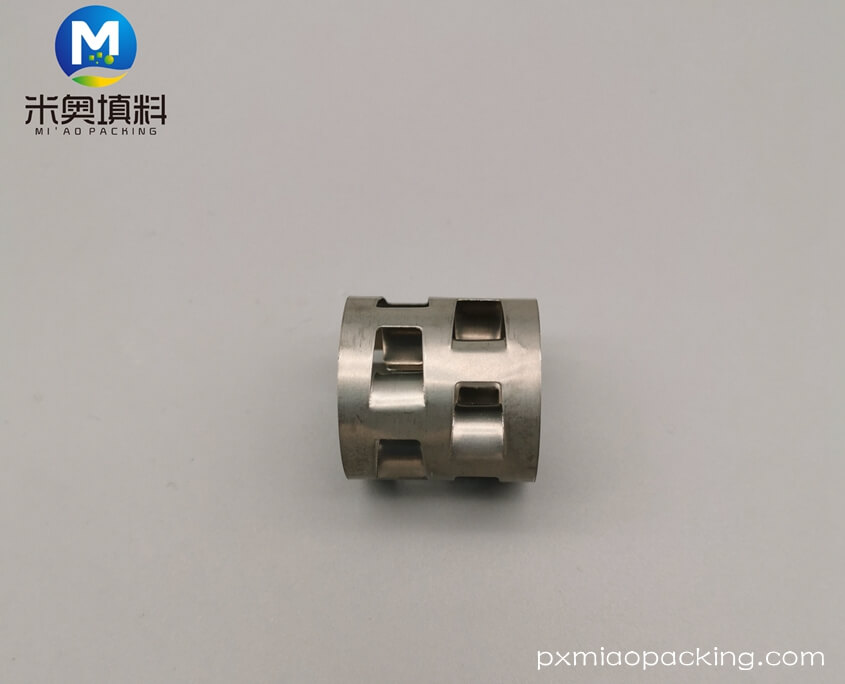

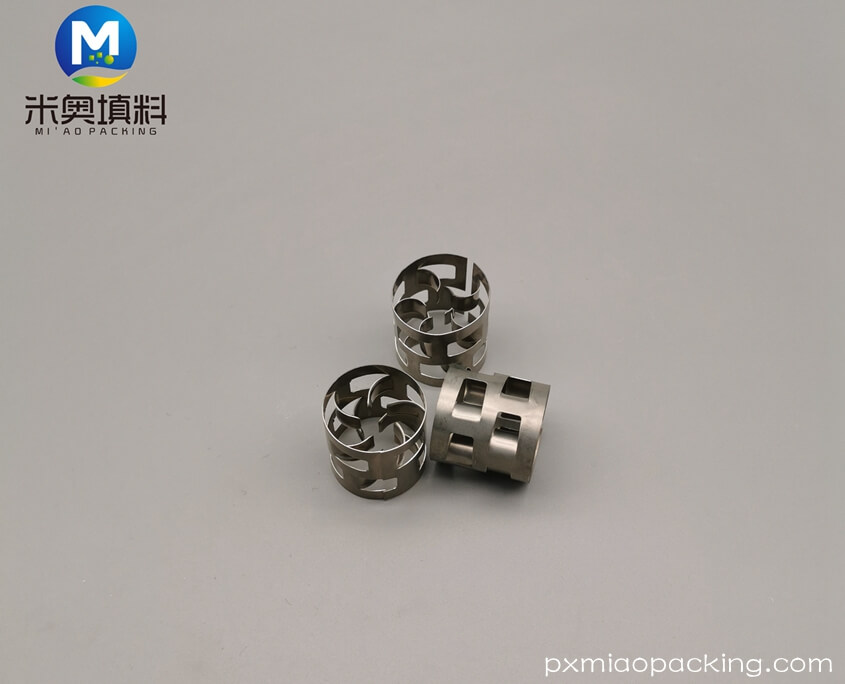

Metal Pall Ring
Metal Pall Ring has a greatest improvement in random packing came with the introduction of “windows” and “fingers” to the Raschig Ring packing.
By opening up the Raschig Ring, by punching tabs in the wall of the ring to create internal drip points within the ring, both the capacity and the efficiency of the random packing were increased by 50-80%. The Pall Ring is characterized by having the same height as its diameter. This type of packing is used extensively in absorption and distillation services. High Performance Packing can replace it for better efficiency and capacity in the same bed height.
Popular material:
SUS304
SUS316L
Carbon Steel
Alloy etc.
Introduction:
Metal Pall Ring has a greatest improvement in random packing came with the introduction of “windows” and “fingers” to the Raschig Ring packing.
By opening up the Raschig Ring, by punching tabs in the wall of the ring to create internal drip points within the ring, both the capacity and the efficiency of the random packing were increased by 50-80%. The Pall Ring is characterized by having the same height as its diameter. This type of packing is used extensively in absorption and distillation services. High Performance Packing can replace it for better efficiency and capacity in the same bed height.
Specification Data:
| Specification | Number per volume | Surface-area | Void Volume | Dry packing factor |
| D×H×δ mm | n/m3 | m2/m3 | % | |
| 16×16×0.4 | 185000 | 239 | 0.928 | 299 |
| 25×25×0.6 | 51900 | 219 | 0.934 | 269 |
| 38×38×0.8 | 13800 | 129 | 0.945 | 153 |
| 50×50×1 | 6500 | 112.3 | 0.949 | 131 |
Popular material:
SUS304
SUS316L
Carbon Steel
Alloy etc.
Package
woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
