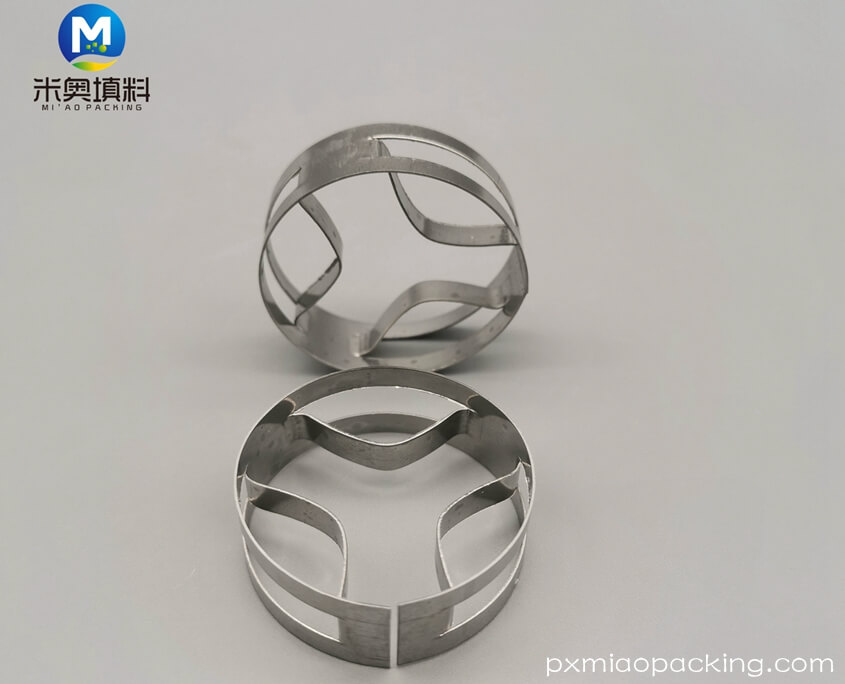

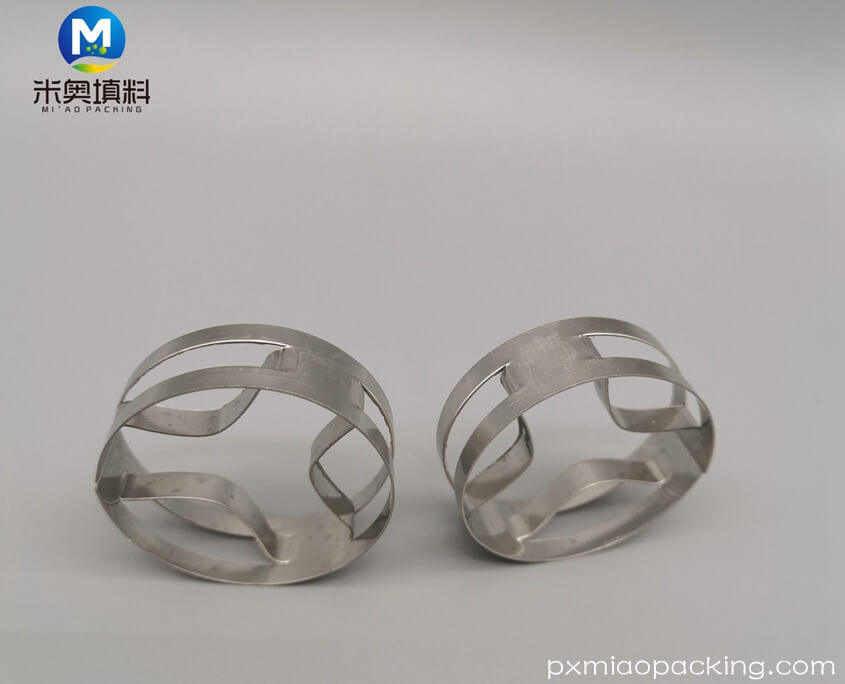

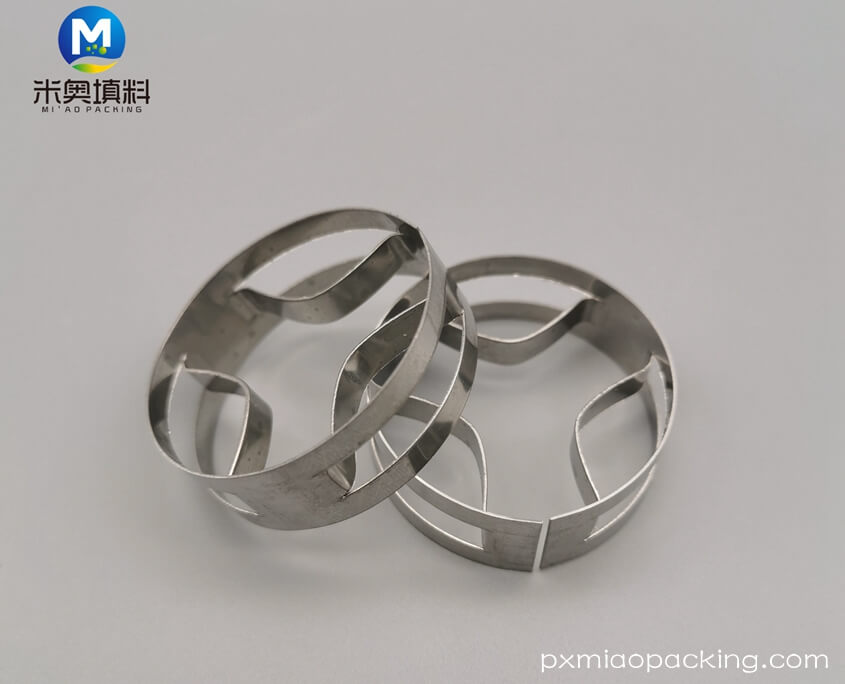

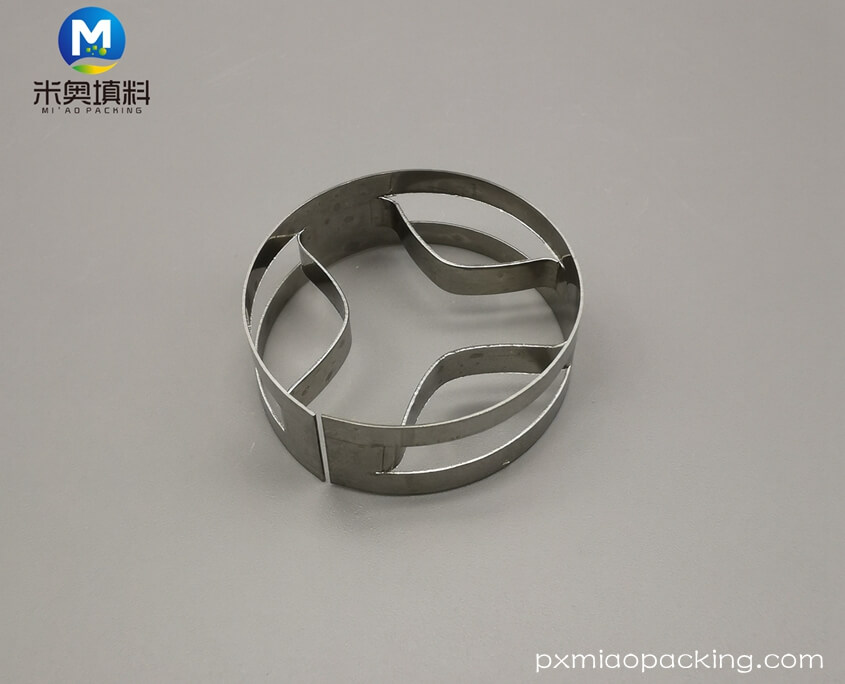

Metal Supper Mini Ring

Super mini ring is also called Metal Flat Ring.

Its height diameter ratio is 0.2~0.4. It cancels the flange of Cascade mini ring, adopt inside arch web-plate to increase the packing strength.

Material

Stainless Steel include 410, 304,316 L, 2205 duplex , 904 L,etc
Carbon Steel
Alloys include Monel,Titanium,Hastelloy,Nickel,etc
Copper, Aluminum
Other Materials Available upon request

Package

Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet

Introduction:

Super mini ring is also called Metal Flat Ring ring.

Its height diameter ratio is 0.2~0.4. It cancels the flange of Cascade mini ring, adopt inside arch web-plate to increase the packing strength.

Material Type D*H*THX Bulk Qty Bulk Density Specific Area Void
Metal QH-1 (mm) m-3 kg/m3 m2/m3 m3/m3
16 16*5.5*0.6 378000 492 348 0.923
25 29*9.0*0.6 155000 516 228 0.936
38 38*12.7*0.7 48000 400 150 0.95
50 50*17.0*0.8 21500 360 120 0.965
Material Type D*H*THX Bulk Qty Bulk Density Specific Area Void
Metal QH-2 (mm) m-3 kg/m3 m2/m3 m3/m3
16 16*5.5*0.3 406000 339 312 95.7
25 25*9.0*0.4 166000 351 256 95.4
38 38*12.7*0.6 52000 344 170 95.2
50 50*17.0*0.8 23000 389 125 95.6
75 75*25*1.0 6200 260 74 96.7
Material Type D*H*THX Bulk Qty Bulk Density Specific Area Void
Metal QH-3 (mm) m-3 kg/m3 m2/m3 m3/m3
16 16*5.5*0.3 378000 246 348 0.934
25 25*9.0*0.4 155000 344 228 0.955
38 38*12.7*0.6 48000 342 150 0.963
50 50*17.0*0.7 21500 315 120 0.972
75 75*25*0.9 5800 243 70 0.985

Advantage

Stainless Steel include 410, 304,316 L, 2205 duplex , 904 L,etc
Carbon Steel
Alloys include Monel,Titanium,Hastelloy,Nickel,etc
Copper, Aluminum
Other Materials Available upon request

Package

Woven bags with 25kgs/bag
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet

FAQ

1.Can you provide free samples?
We can provide free samples within 5pcs.

2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.

3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.

4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.

5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.

6.How to pay?
T/T, L/C, Paypal or Western Union.

7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
