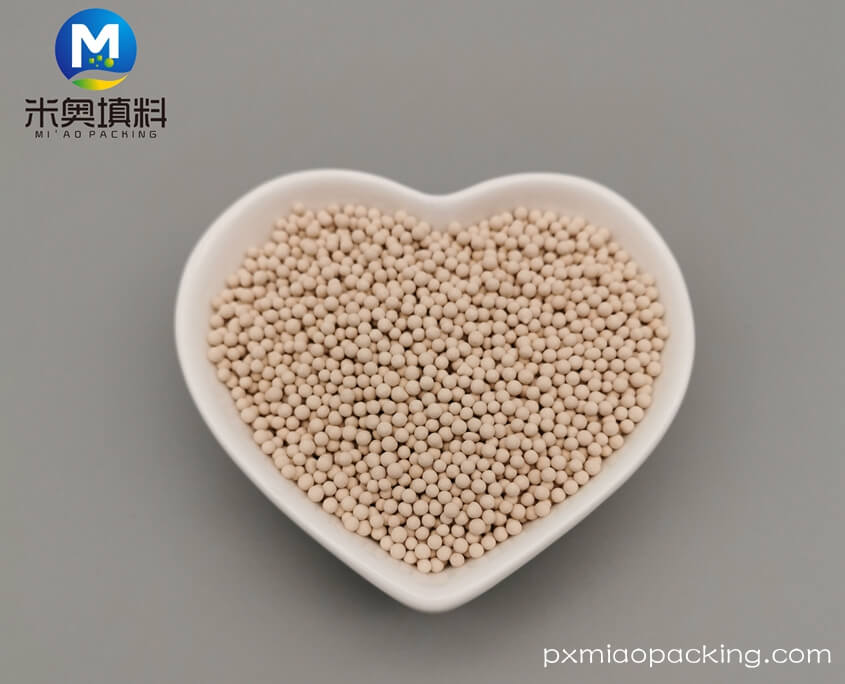

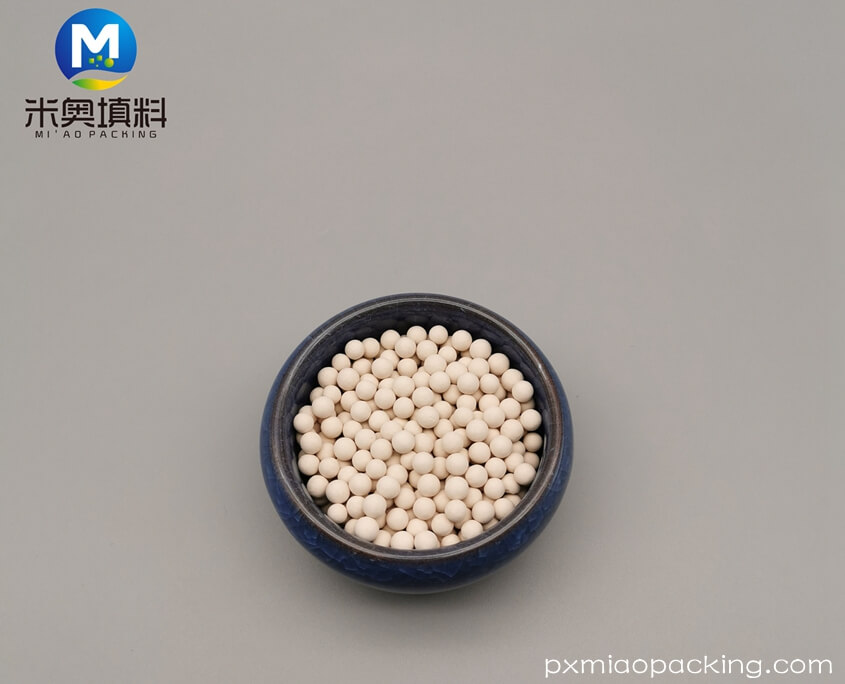

Molecular Sieve 13X APG
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. The pore size 13X molecular sieve is about 10 A. It can absorb any molecular smaller than 10 A, mainly used as catalyze carrier, co-absorption of CO2 and H2O, H2O and H2S, as desiccant for medical and air compressor system, and can also be adjusted to fit other various applications.
Type 13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. It has largeer capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, it is suitable for any air cryo-separation plants of any size and any types in the world.
Formula: Na2O·Al2 O3·2.45SiO2·6.0H2O
Silica-alumina Ratio: SiO2/ Al2O3≈2.6
Introduction:
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. The pore size 13X molecular sieve is about 10 A. It can absorb any molecular smaller than 10 A, mainly used as catalyze carrier, co-absorption of CO2 and H2O, H2O and H2S, as desiccant for medical and air compressor system, and can also be adjusted to fit other various applications.
Type 13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. It has largeer capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, it is suitable for any air cryo-separation plants of any size and any types in the world.
Application
Air refining (removing CO2 and H2O).
Removal of mercaptans and hydrogen sulphide from natural gas using patented Zeochem technology.
Removal of mercaptans and hydrpogen sulphide from hydrocarbon liquid streams (LPG, butane, propane etc).
Air separation oxygen generation.
Special double glass (removing solvent and grease).
Technical specification
Item | Unit | Target | |||
Shape | Pellet | Sphere | |||

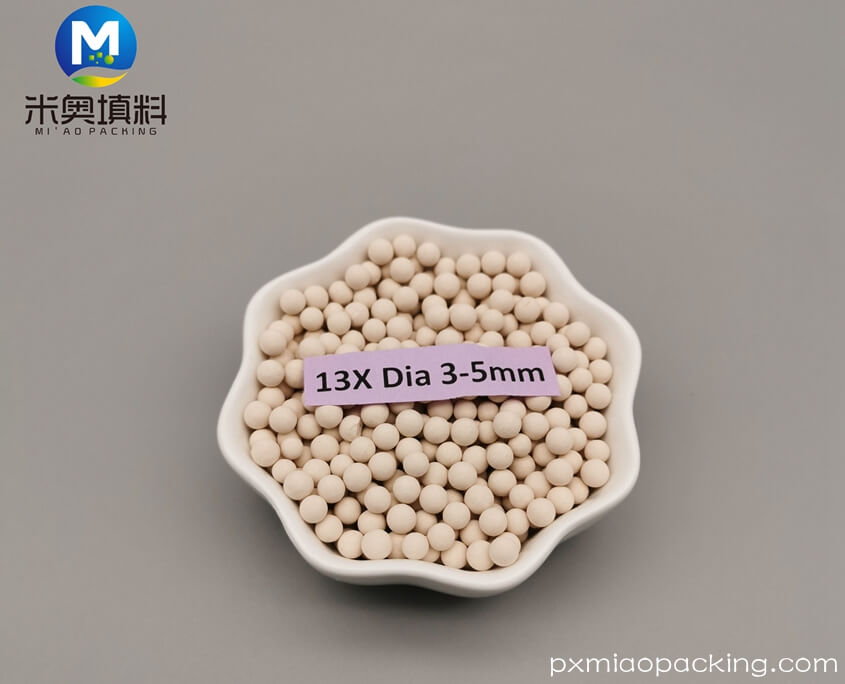

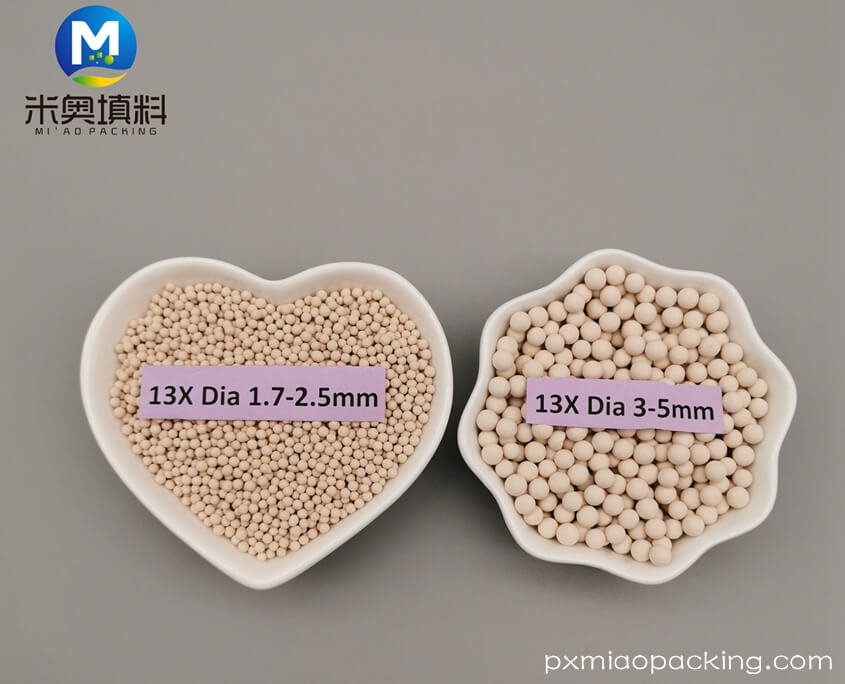

Diameter | mm | 1.6 | 3.2 | 1.7-2.5 | 3-5.0 |
Size ratio up to grade | % min | 98 | 98 | 96 | 96 |
Bulk density | g/ml | 0.68 | 0.65 | 0.70 | 0.70 |
Wear ratio | % max | 0.2 | 0.2 | 0.2 | 0.2 |
Crushing strength | N min | 30 | 45 | 35 | 85 |
Static water absorption capacity | % min | 27 | 27 | 27 | 27 |
CO2 air disposal | NL/g min | 18 | 18 | 18 | 18 |
Strength | compression garrulous
strength N/mm2 |
35 | 35 | 40 | 80 |
Coefficient of variation | 0.3 | 0.3 | 0.3 | 0.3 | |
Moisture content | water % max 300℃ | 1 | 1 | 1 | 1 |
Regeneration
1. Removing the moisture
You May use the dry gas like nitrogen, the air, the hydrogen, the saturated hydrocarbon and heat the gas up to 150-320 ℃. Firstly you need let the hot gas purge through the molecular sieve bed with the pressure of 0. 3-05kg/m2 for 3 to 4 hours.Then change to dry cold gas for 2-3 hour, at last you need isolate the molecular sieve from air and cool it to room temperature.
2. Removing the organics
You can use the water vapor to take the place of organics, then use the method 1.
You can also use the hot water vapor or inner gas pass through the molecular sieve under the temperature of 200-350℃ (couldn’t use the gas which will explore when to mix with the adsorbed organics).
3. Removing the gas
You can reduce the pressure to regenerated the molecular sieve.
Package
Vacuum packing, carton with 25kgs/carton, paper drum with 25kgs/drum, steel drum with 120-150kgs/drum, etc. per customers requirement.
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 10 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
