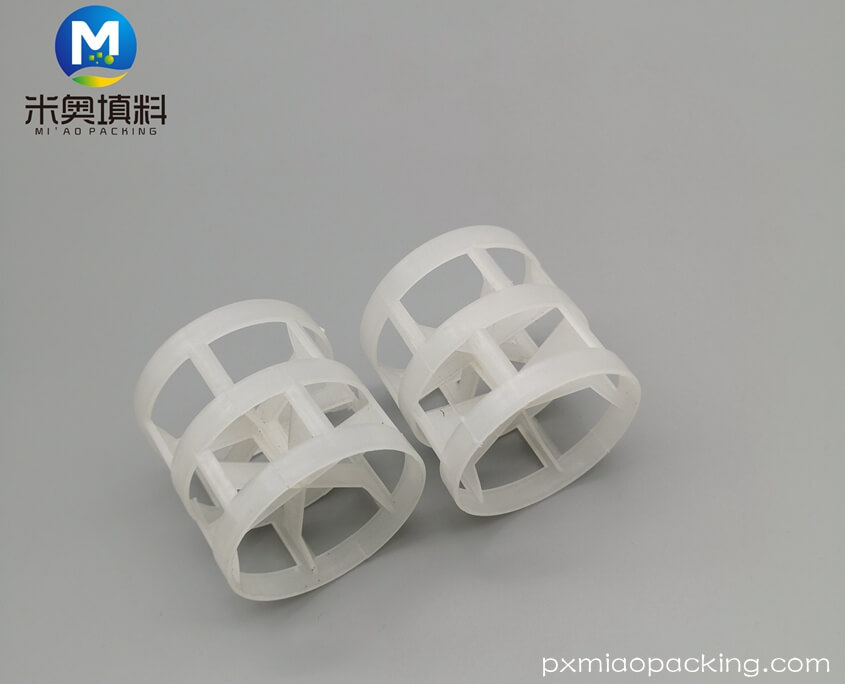

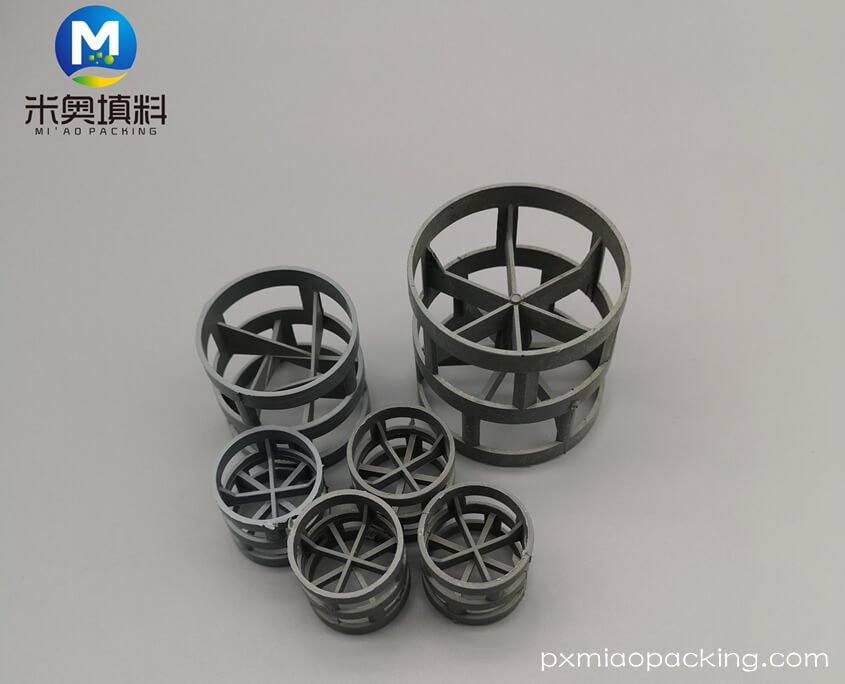

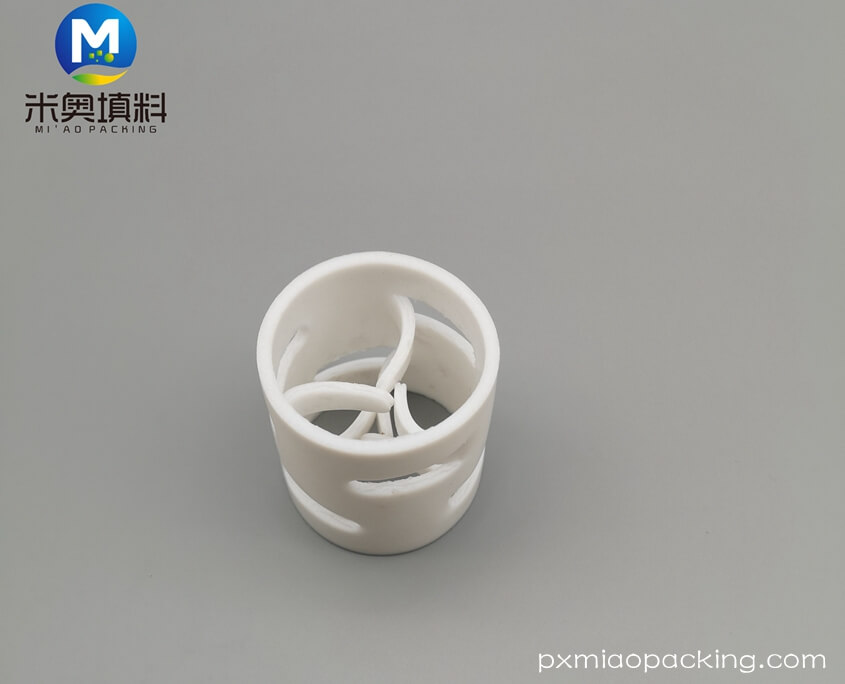

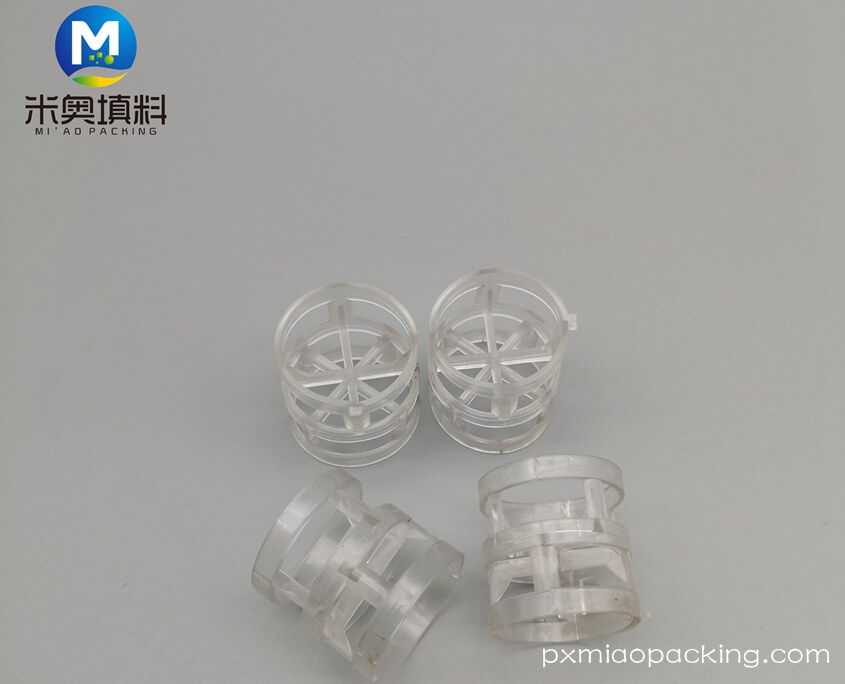

Plastic Pall Ring
It has the characteristic of low pressure drop, large void space, large flux, high efficiency, low energy consumption etc., Further more excellent distribution in tower packing, it is widely apply in the separation and absorption process, device of reducing pressure.
Application
It can be applied to various of device of isolation, absorption, common decompression such as Toluene separation , Ethylbenzene separation, Isooctane separation and desulfurization System etc.
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Introduction:
It has the characteristic of low pressure drop, large void space, large flux, high efficiency, low energy consumption etc., Further more excellent distribution in tower packing, it is widely apply in the separation and absorption process, device of reducing pressure.
Application
It can be applied to various of device of isolation, absorption, common decompression such as Toluene separation , Ethylbenzene separation, Isooctane separation and desulfurization System etc.
Specification
| Product | Material | Model | Size | Number Per Volume | Surface Area | Void Volume | Dry Packing Factor |
| Pall ring | PVC | D×H×δ mm | n/m3 | m2/m3 | % | m-1 | |
| PP | Φ16 | 16×16×1 | 180000 | 188 | 91.1 | 275 | |
| PE | Φ25 | 25×25×1.2 | 49000 | 175 | 90 | 239 | |
| CPVC | Φ38 | 38×38×1.4 | 13600 | 155 | 89 | 220 | |
| RPP | Φ50 | 50×50×1.5 | 6300 | 93 | 90 | 127 | |
| Φ76 | 76×76×2.6 | 1830 | 73.2 | 92 | 94 |
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
