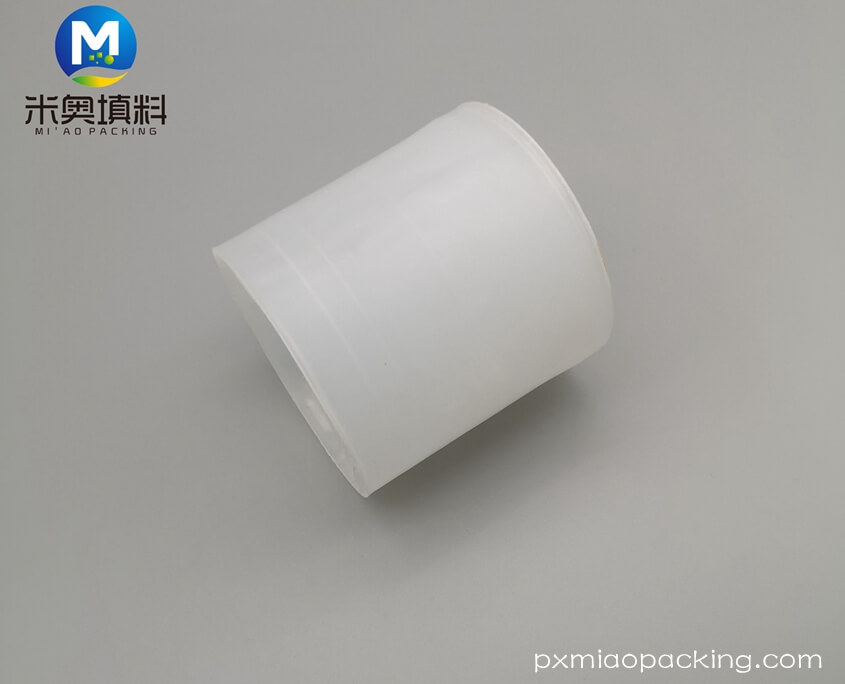

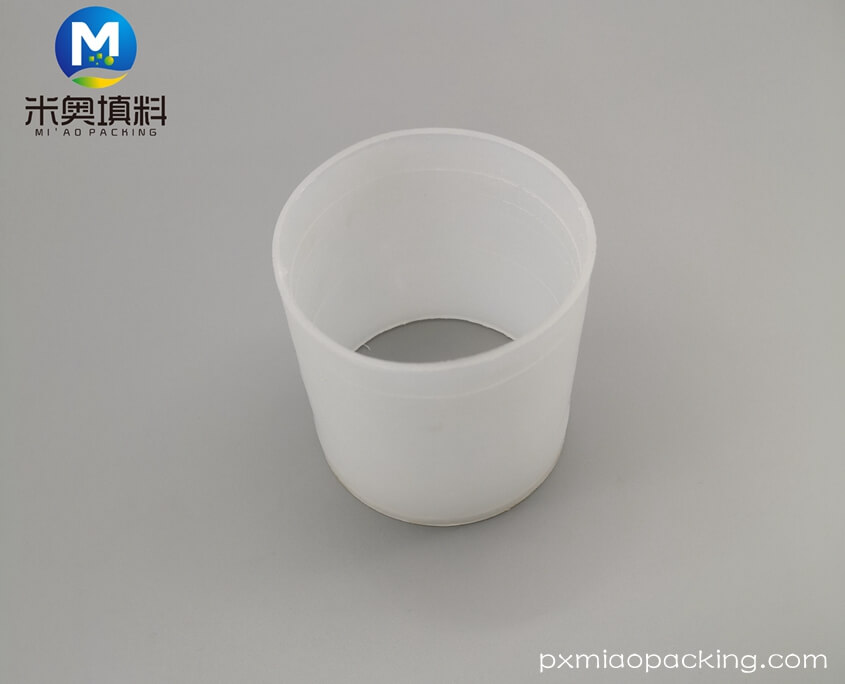

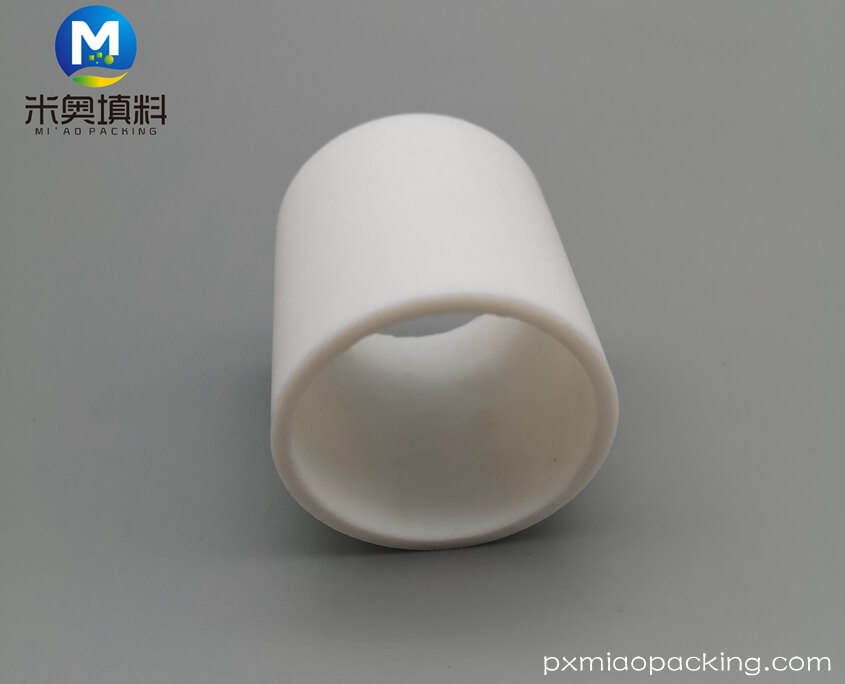

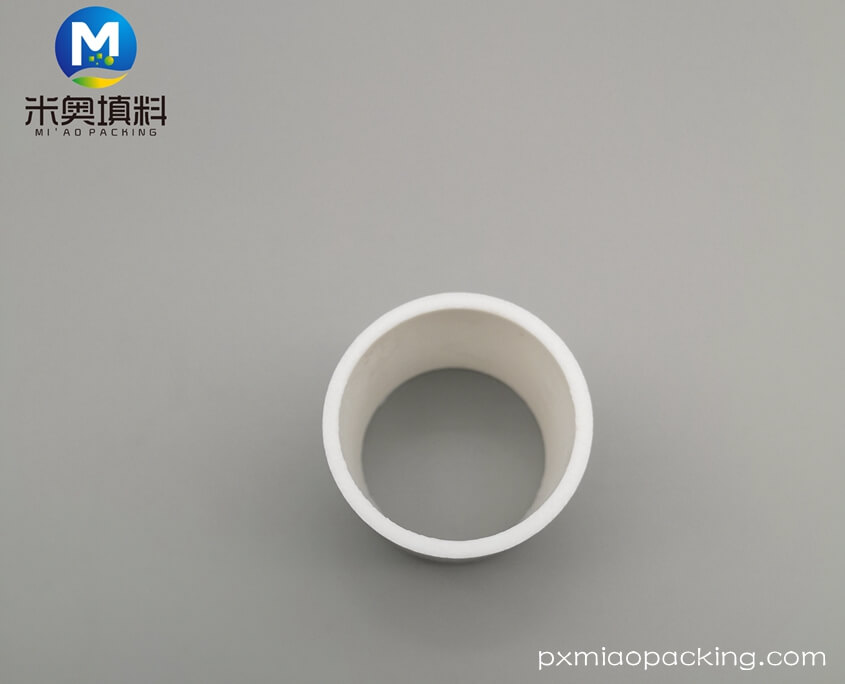

Plastic Raschig Ring
Introduction：The plastic raschig ring has simple structure, of which the height and the diameter are the same.
It is applied in many fields such as chemistry, metallurgy, coal gas, environmental protection in the desiccation tower, adsorption tower, cooling tower, washing tower and regeneration tower.
Also used for devices where gas and liquid are put in contact for purposes of gas absorption, stripping or chemical reaction, and as a support for bio filters in biological reactors.
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
Introduction:
The plastic raschig ring has simple structure, of which the height and the diameter are the same.
It is applied in many fields such as chemistry, metallurgy, coal gas, environmental protection in the desiccation tower, adsorption tower, cooling tower, washing tower and regeneration tower.
Also used for devices where gas and liquid are put in contact for purposes of gas absorption, stripping or chemical reaction, and as a support for bio filters in biological reactors.
Technical data
| D×H×δ | Specific area | Void rate | Bulk number | Package density | F factor |
| mm | m2/m3 | % | Pieces/m³ | Kg/m³ | m-1 |
| 16×16×1 | 188 | 0.91 | 170000 | 141 | 275 |
| 25×25×1.2 | 175 | 0.9 | 53500 | 82 | 239 |
| 38×38×1.4 | 115 | 0.89 | 15800 | 54 | 220 |
| 50×50×1.5 | 93 | 0.9 | 6500 | 56 | 127 |
| 76×76×2.6 | 73.2 | 0.92 | 1927 | 58 | 94 |
| 100×100×3.0 | 52.8 | 0.94 | 1000 | 50 | 82 |
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
