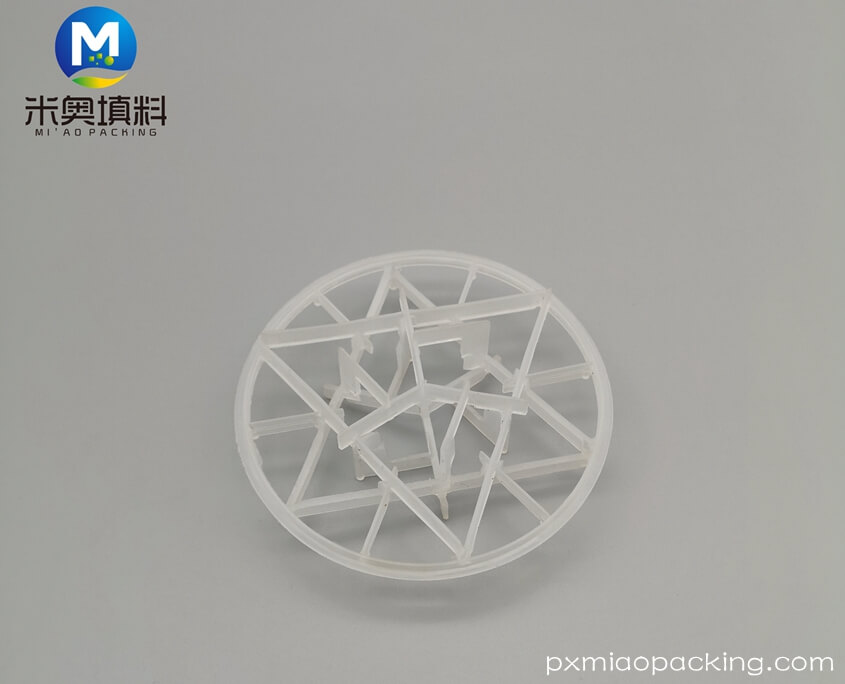

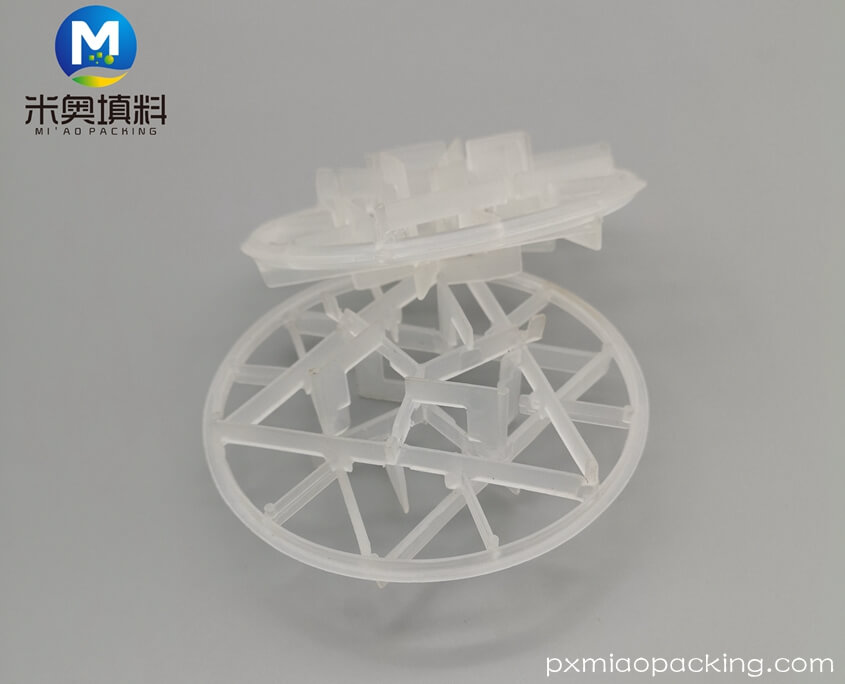

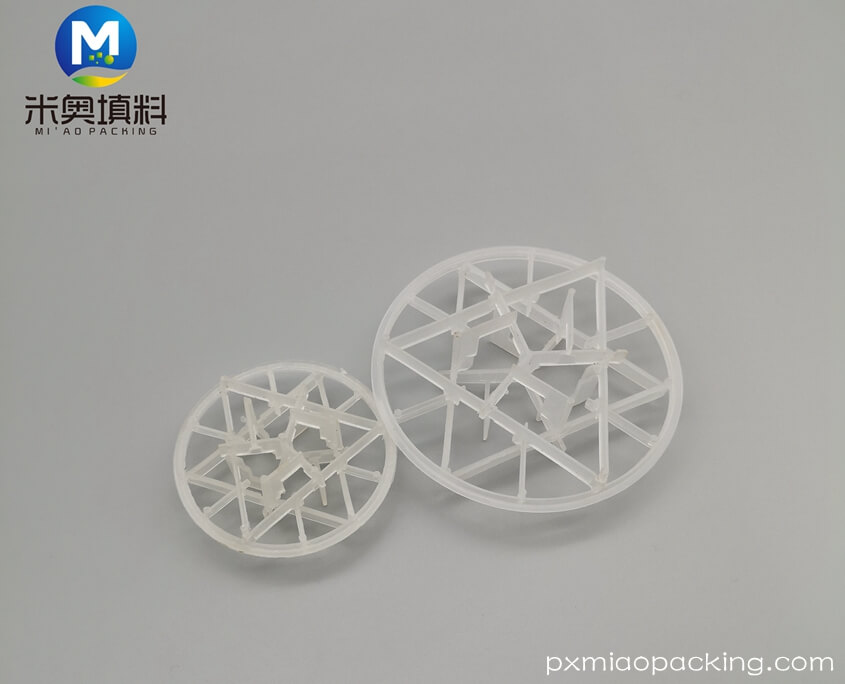

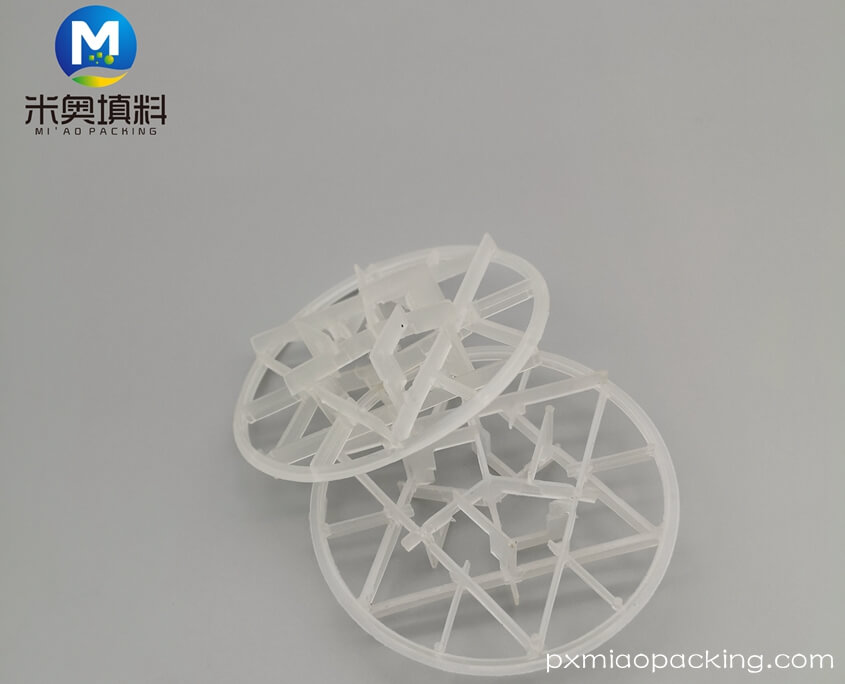

Plastic Snow Flake
Plastic Snowflake ring can offer superior separation efficiency and capacity in environmental application, such as scrubbing and stripping. Independent tests have proven Snowflake ring to be the most effective packing available for groundwater air stripping applications, yielding removal efficiency of 99 % or above.
Its unique shape can decrease pressure drop, which substantially reduces electrical energy consumption. In typical system designs , Snowflake ring can save more than 50% in energy costs than traditional plastic saddles. In new installations, the pressure drop advantage of Snowflake Ring enables the designer to significantly reduce the size of towers and blowers.
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
Introduction:
Plastic Snowflake ring can offer superior separation efficiency and capacity in environmental application, such as scrubbing and stripping. Independent tests have proven Snowflake ring to be the most effective packing available for groundwater air stripping applications, yielding removal efficiency of 99 % or above.
Its unique shape can decrease pressure drop, which substantially reduces electrical energy consumption. In typical system designs , Snowflake ring can save more than 50% in energy costs than traditional plastic saddles. In new installations, the pressure drop advantage of Snowflake Ring enables the designer to significantly reduce the size of towers and blowers.
Specification
| Name | Size | Surface Area | Void | Bulk Number | Bulk Density | Packing Factor |
| mm | m²/m³ | % | Pieces/m³ | Kg/m³ | ||
| Snowflake Ring | 90 | 138 | 97 | 5300 | 54 | 142 |
| Snowflake Ring | 63 | 158 | 90 | 15000 | 72 | 136 |
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
