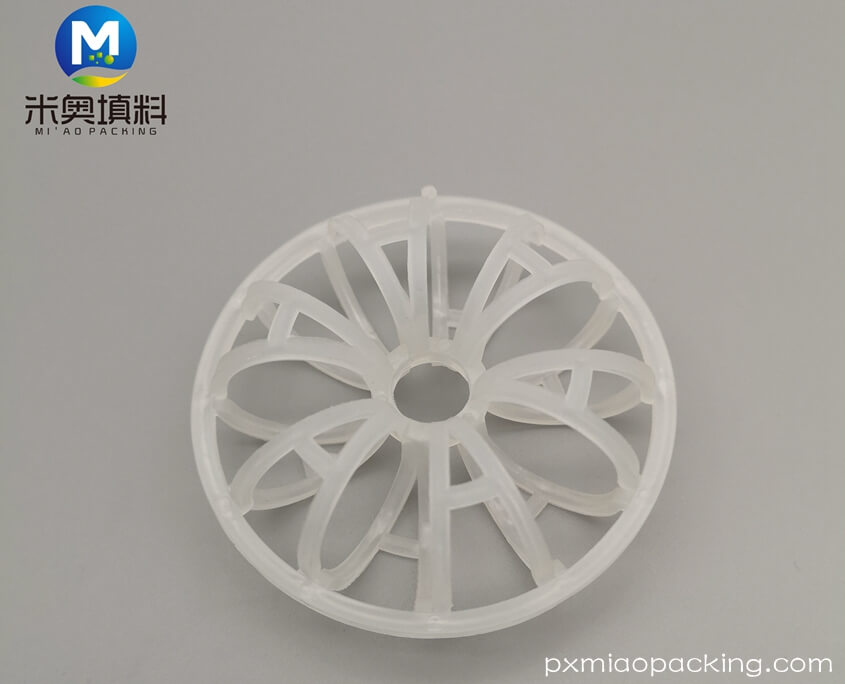

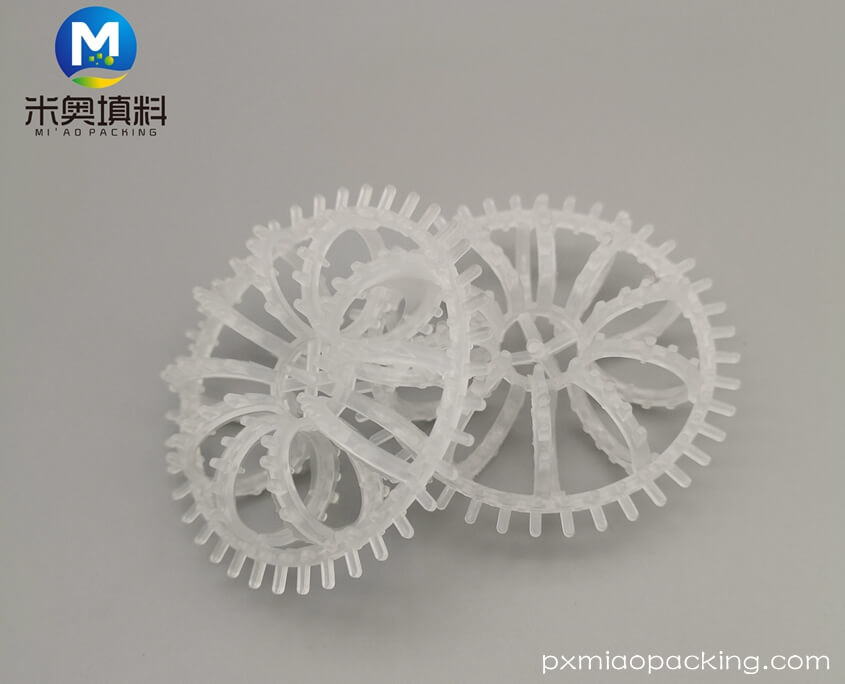

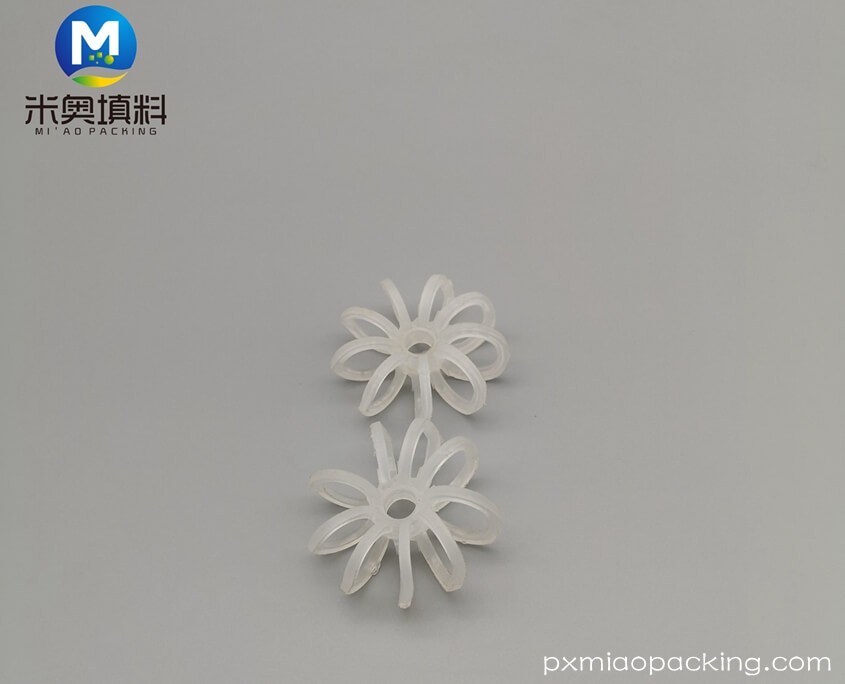

Plastic Teller Rosette Ring
Plastic Teller Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE),polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60°Cto 150°C.
For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
Introduction:
Plastic Teller Rosette Ring is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE),polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF).
It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60°Cto 150°C.
For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Product Specifications
| Sizes | Surface | Free Vol | Number | Weight |
| (mm) | (m2/m3) | (%) | (per m3) | (kg/m3) |
| 25*9*(1.5*2) (5 ring) | 195 | 82 | 170000 | 90 |
| 47*19*(3*3) (9 ring) | 185 | 88 | 32500 | 111 |
| 51*19*(3*3) (9 ring) | 180 | 98 | 23500 | 103 |
| 59*19*(3*3) (12 ring) | 150 | 92 | 17500 | 72 |
| 73*27.5*(3*4) (12 ring) | 127 | 89 | 8000 | 60 |
| 95*37*(3*6) (18 ring) | 94 | 90 | 3900 | 55 |
| 145*37(3*6) (20 ring) | 118 | 95 | 1100 | 48 |
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
