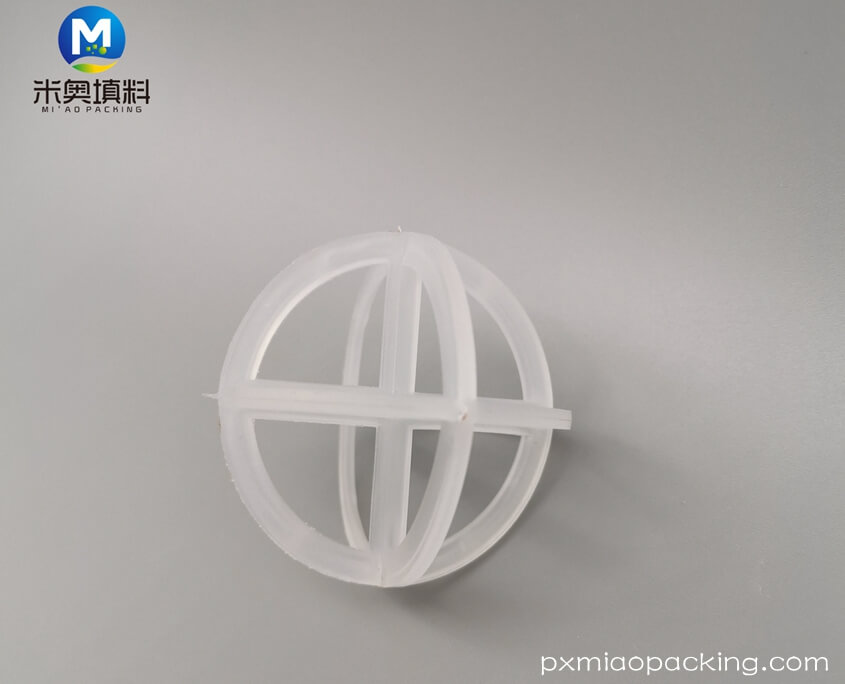

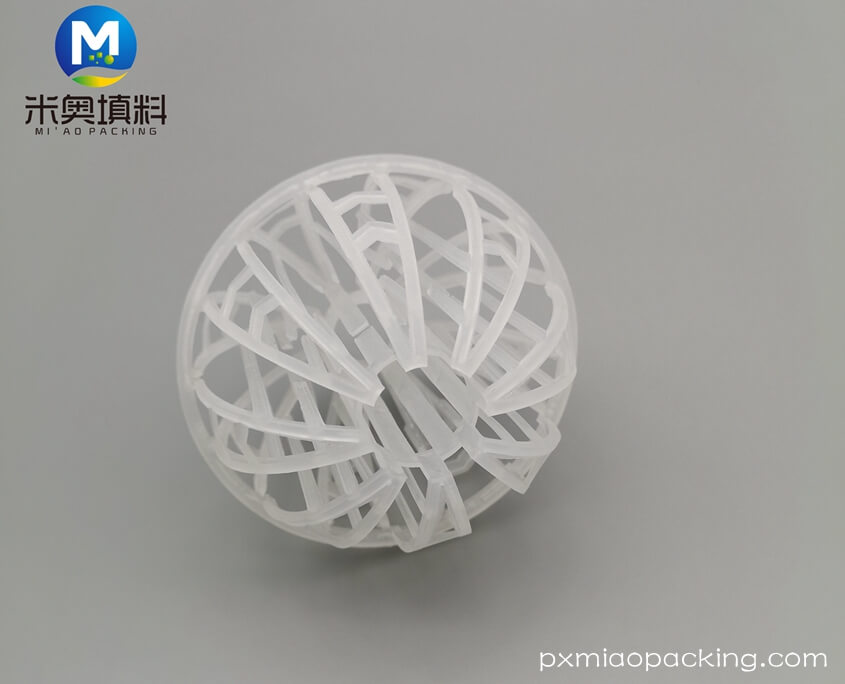

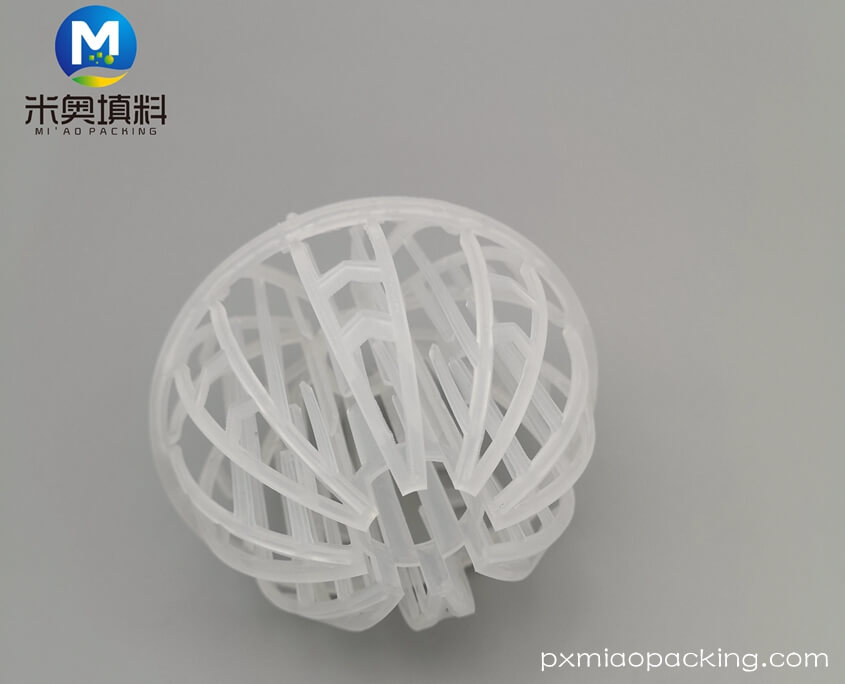

Plastic Tri-pack
Tri -pack was designed by Jager Tri. The advantage of tri -pack is no big surface area. The distinctive shaping of ribs, struts and drip rods tri packs tower packing media superior wetting characteristics, and the ability to maintain uniform liquid distribution throughout the bed.
In the traditional theory of mass transfer, we often think big surface area will increase the mass transfer efficiency. Sometimes, excess surface area can impede gas/liquid contact and create higher pressure drops. Finally, it will lead to Packing’s channel blocking. Based on this new understanding, Jager invented Tri-pack.
Basically the packing provides maximum surface contact between the gas & the scrubbing liquid by facilitation through continuous formation of droplet by the packed bed. It was recognized best packing in air stripping, de-gasifier and scrubber.
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
Introduction:
Tri -pack was designed by Jager Tri. The advantage of tri -pack is no big surface area. The distinctive shaping of ribs, struts and drip rods tri packs tower packing media superior wetting characteristics, and the ability to maintain uniform liquid distribution throughout the bed.
In the traditional theory of mass transfer, we often think big surface area will increase the mass transfer efficiency. Sometimes, excess surface area can impede gas/liquid contact and create higher pressure drops. Finally, it will lead to Packing’s channel blocking. Based on this new understanding, Jager invented Tri-pack.
Basically the packing provides maximum surface contact between the gas & the scrubbing liquid by facilitation through continuous formation of droplet by the packed bed. It was recognized best packing in air stripping, de-gasifier and scrubber.
Technical data sheet
| Size | Surface area | Void ratio | Bulk Density | Number |
| mm | ft2/ft3 | % | Kg/m3 | pieces/m3 |
| Φ25 | 85 | 90 | 81 | 81200 |
| Φ32 | 70 | 92 | 70 | 25000 |
| Φ50 | 48 | 93 | 62 | 11500 |
| Φ95 | 38 | 95 | 45 | 1800 |
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
