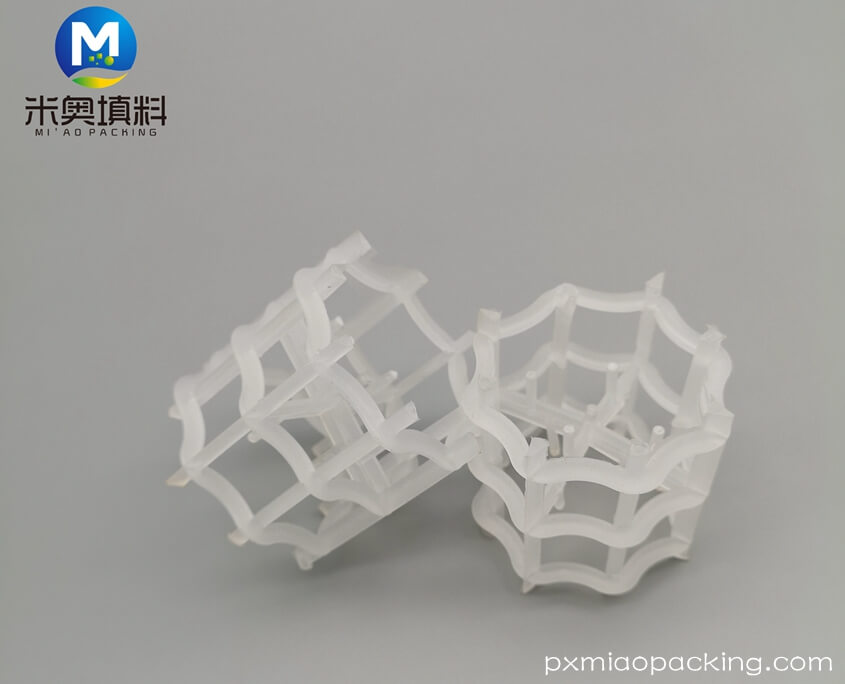

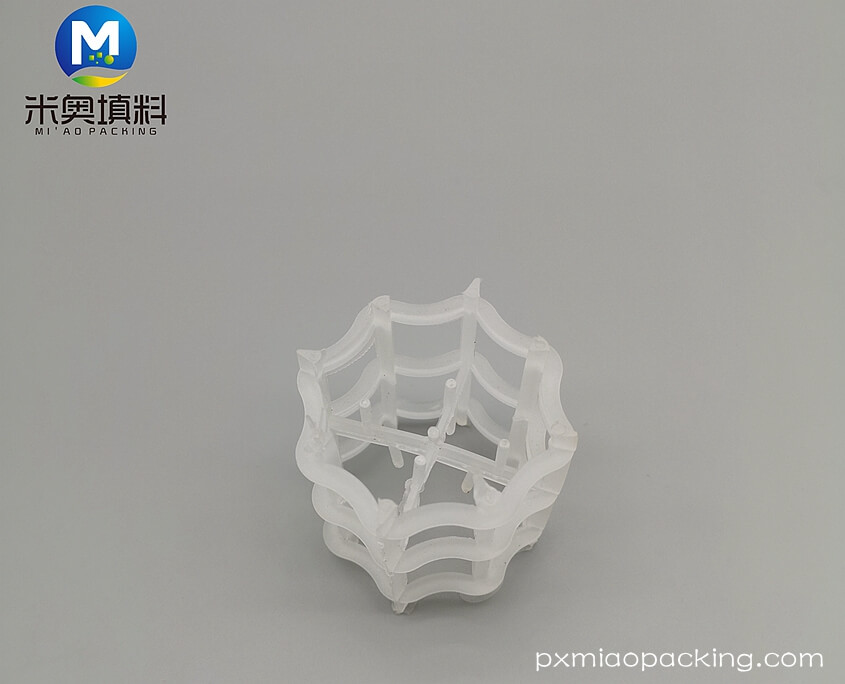

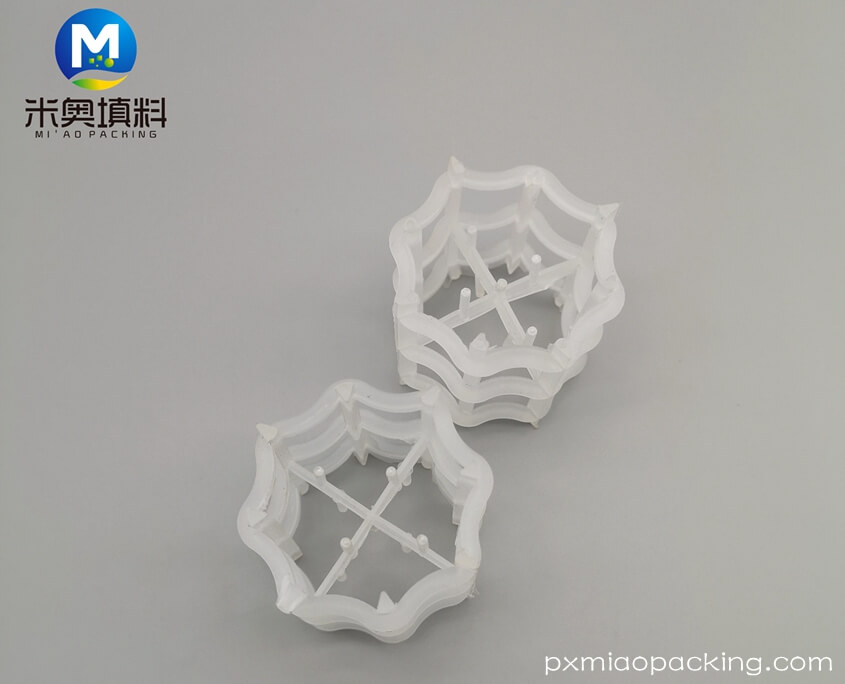

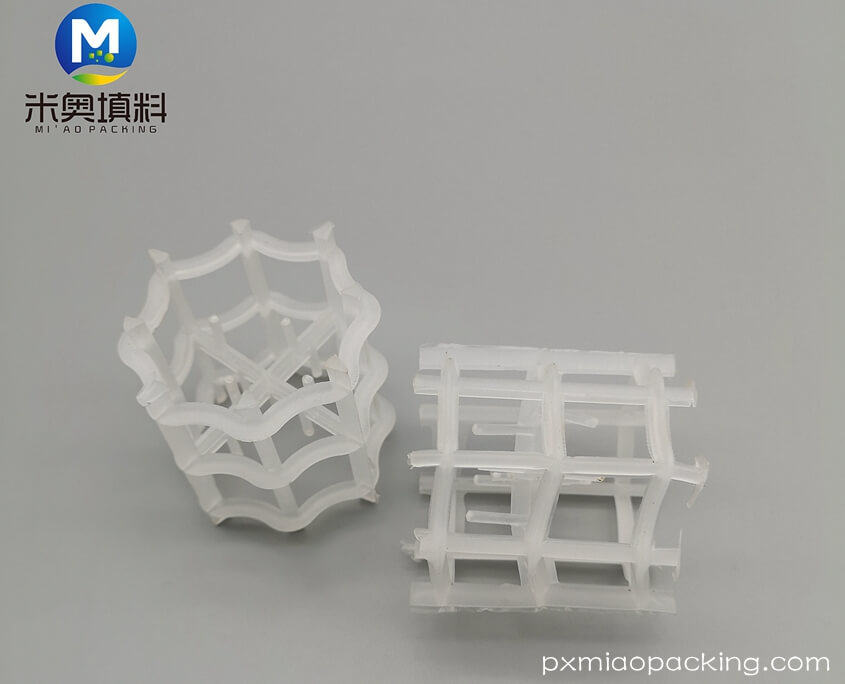

Plastic VSP Inner Arc
The plastic VSP inner arc ring is made from anti corrosive plastic material of PE, PP,RPP, PVC, CPVC or PVDF etc. It is widely used in the fields of petroleum, chemical engineering, chloral-alkali, coal gas and environmental protection industries.
Good Capacity and Low Pressure Drop
Higher capacity and lower pressure drop than ceramic packing.
Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Higher Liquid Hold-up and Residence Time
Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
Versatile Standard Packing
Base on Lower sensitivity to liquid and vapor distribution quality ,it is used with conventional liquid distributors.
Introduction:
The plastic VSP inner arc ring is made from anti corrosive plastic material of PE, PP,RPP, PVC, CPVC or PVDF etc. It is widely used in the fields of petroleum, chemical engineering, chloral-alkali, coal gas and environmental protection industries.
Good Capacity and Low Pressure Drop
Higher capacity and lower pressure drop than ceramic packing.
Multiple sizes provide ability to optimize capacity and efficiency based on application requirements.
Higher Liquid Hold-up and Residence Time
Relatively high liquid hold-up allows good absorption efficiency with slow chemical reaction.
Versatile Standard Packing
Base on Lower sensitivity to liquid and vapor distribution quality ,it is used with conventional liquid distributors.
High Mechanical Strength
Ring and open construction provide high mechanical strength allows using in deep beds.
Available materials
PP, PE
PVC, CPVC
PVDF, PTFE, PFA and many other materails as according to customer’s requirement
Specification
| Specification | D×H×T | Specific Area | Void Ratio | Number | Bulk Density | Drying Packing Factor |
| mm | mm | m2/m3 | m3/m3 | n/m3 | kg/m3 | m-1 |
| φ25 | 25×12.5×1.2 | 250 | 0.93 | 81000 | 90 | 310 |
| φ38 | 38×19×1.4 | 138 | 0.95 | 26800 | 78 | 163 |
| φ50 | 50×25×1.5 | 121 | 0.95 | 10560 | 76 | 144 |
| φ76 | 76×38×2.5 | 75 | 0.95 | 3400 | 70 | 86 |
Materials Physical Property
| Performance/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density (g/cm3) | 0.94-0.96 | 0.89-0.91 | 0.93-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Operation Temp. (Centigrade) | 90 | >100 | >120 | >60 | >90 | >150 |
| Chemical corrosion resistance | Good | Good | Good | Good | Good | Good |
| Compression Strength (Mpa) | >6.0 | >6.5 | >7.0 | >6.0 | >8.0 | >10.0 |
Package
Woven bags
Jumbo bags with 1cbm/bag
Pallet with 1cbm/pallet
MOQ: min.1cbm
FAQ
1.Can you provide free samples?
We can provide free samples within 5pcs.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
