Ceramic Structured Packing

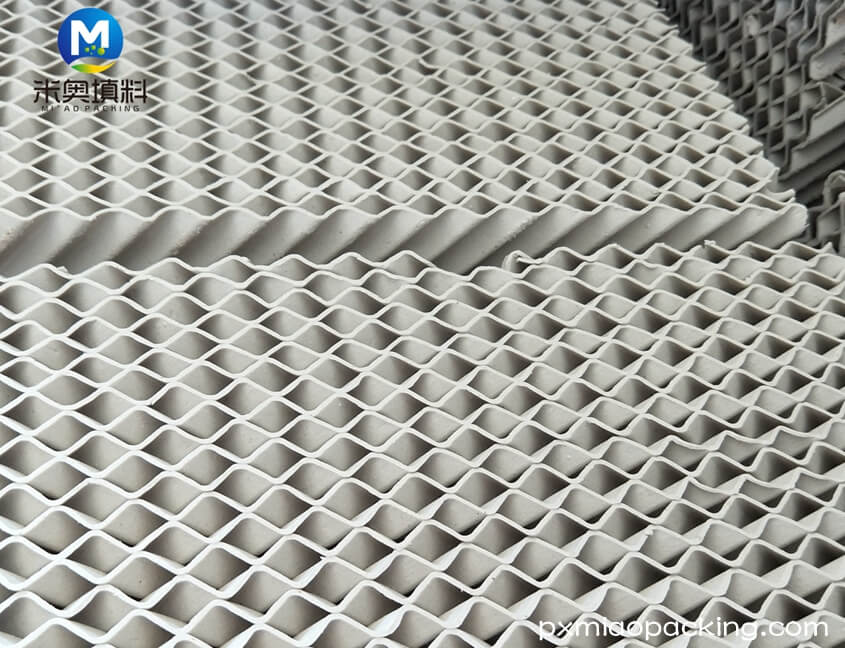

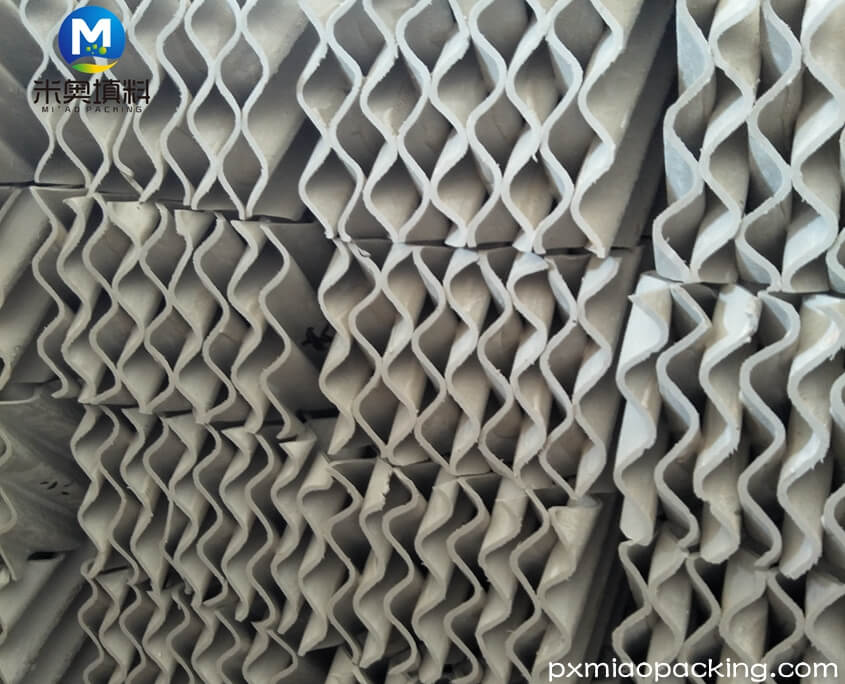

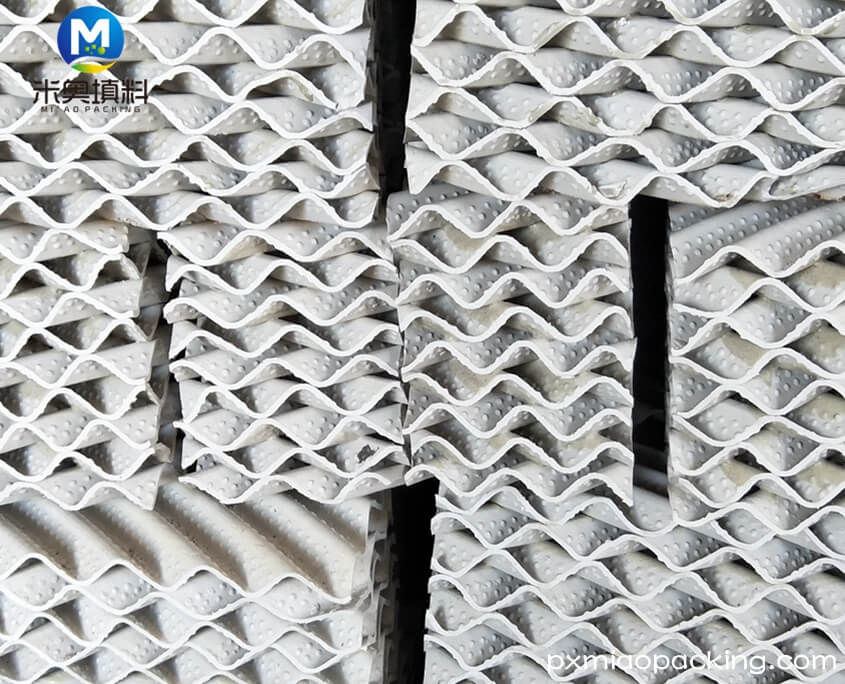

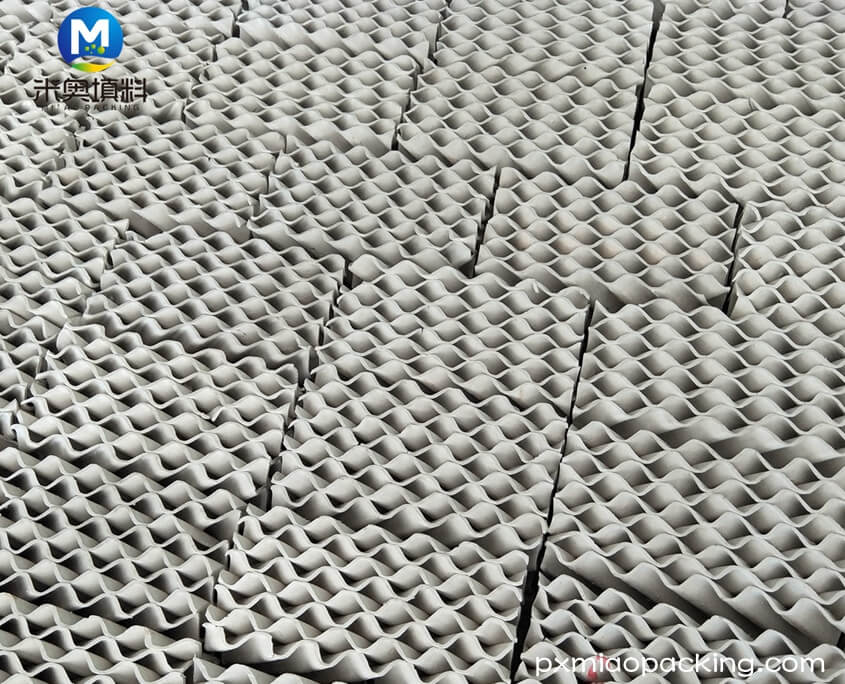

Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing.
They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.
Package
Cartons and pallets
Wooden case
MOQ: min.1ton
Warranty
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
Introduction:
Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.
Application
Rectifying organic halite.
Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.
Operating in vacuum conditions at a bottom absolute pressure of 100pa.
Used in heat exchanger and demisting, or as a catalyst carrier.
Chemical Composition
| SiO2 | Fe2O3 | CaO | Al2O3 | MgO | Other |
| ≥72% | ≤0.5% | ≤1.0% | ≥23% | ≤1.0% | 2% |
Physical Property
| Index | Value |
| Specific gravity(g/cm3) | 2.5 |
| Water absorption(wt%) | ≤0.5 |
| Acid resistance(wt%) | ≥99.5 |
| Loss in burn(wt%) | ≤5.0 |
| Max. operating Temp.(Degree C) | 800 |
| Crush strength(Mpa) | ≥130 |
| Mohs Hardness(Scale) | ≥7 |
Geometric Characteristic
| Spec | Specific surface(m2/m3) | Bulk density (kg/m3) | Void ratio(%) | Obl. angle | Pressure drop (mmHg/m) | Theo. plate(m-1) | Hydraulic diameter (mm) | Liquid load (m3/m2h) | Max. Factorm/s (Kg/m3)-1 |
| 125Y | 125 | 320 | 90 | 45° | 1.8 | 1.8 | 28 | 0.2-100 | 3 |
| 160Y | 160 | 370 | 85 | 45° | 2 | 2 | 15 | 0.2-100 | 2.8 |
| 250Y | 250 | 420 | 80 | 45° | 2 | 2.5 | 12 | 0.2-100 | 2.6 |
| 350Y | 350 | 470 | 78 | 45° | 2.5 | 2.8 | 10 | 0.2-100 | 2.5 |
| 400Y | 400 | 500 | 75 | 45° | 3 | 3 | 8 | 0.2-100 | 2 |
| 450Y | 450 | 520 | 72 | 45° | 4 | 4 | 7 | 0.2-100 | 1.8 |
| 550Y | 550 | 620 | 74 | 45° | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
| 700Y | 700 | 650 | 72 | 45° | 6 | 7 | 5 | 0.15-100 | 1.3 |
| 100X | 100 | 280 | 92 | 30° | 1.5 | 1 | 30 | 0.2-100 | 3.5 |
| 125X | 125 | 300 | 90 | 30° | 1.8 | 1.5 | 28 | 0.2-100 | 3.2 |
| 160X | 160 | 350 | 85 | 30° | 2 | 1.8 | 15 | 0.2-100 | 3 |
| 250X | 250 | 380 | 80 | 30° | 2.5 | 2.3 | 12 | 0.2-100 | 2.8 |
| 350X | 350 | 450 | 78 | 30° | 3 | 2.5 | 10 | 0.2-100 | 2.6 |
| 400X | 400 | 480 | 75 | 30° | 4 | 2.8 | 8 | 0.2-100 | 2.2 |
| 450X | 450 | 500 | 72 | 30° | 4.5 | 3-4 | 7 | 0.2-100 | 2 |
| 470X | 470 | 440 | 75 | 30° | 5 | 5 | 7 | 0.2-100 | 1.8 |
| 550X | 550 | 620 | 74 | 30° | 5.5 | 5-6 | 6 | 0.18-100 | 1.4 |
| 700X | 700 | 650 | 72 | 30° | 6 | 7 | 5 | 0.15-100 | 1.3 |
Package
Cartons and pallets
Wooden case
Warranty
By National Standard HG/T 3683.1-2000
Offer lifetime consultation on problems occurred
MOQ: min.1ton
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
