Metal Structured Packing
Metal structured packing has three popular types including wire gauze corrugate structured packing, perforated plate corrugated Packing

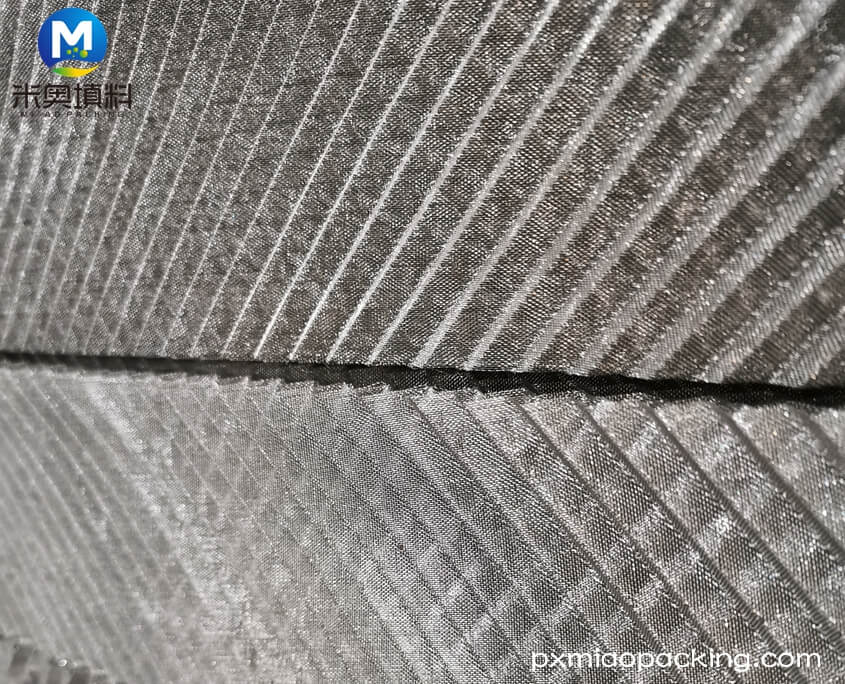

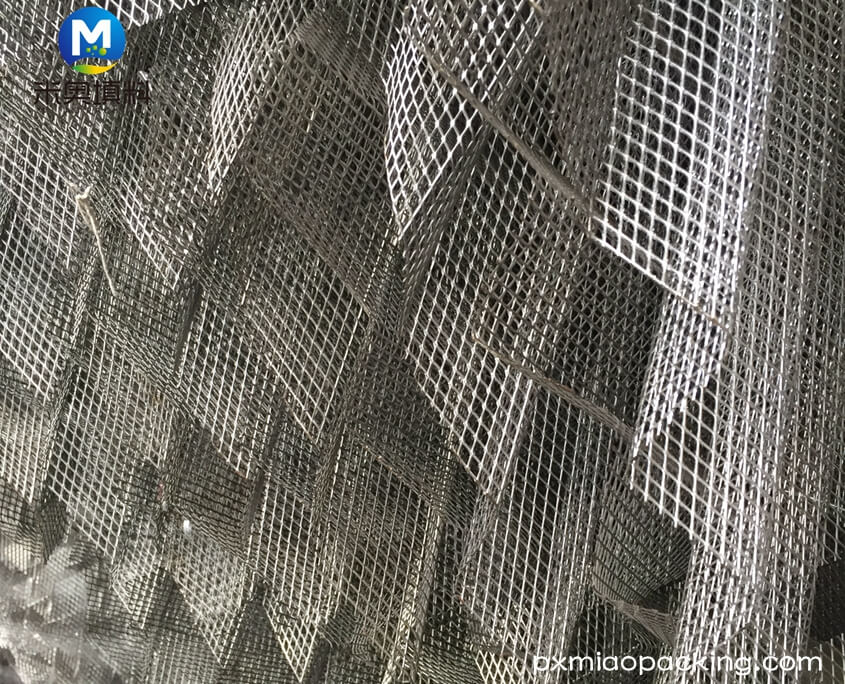

Wire gauze corrugate structured packing is a high efficiency, corrugated-type packing constructed with a wire gauze material. This product is typically used for fine chemical distillation when fouling is not a concern.
Its applications is often vacuum distillations where the liquid rates are extremely low and minimizing pressure drop is critical. The closely woven wires spread the low liquid flow through capillary action. This arrangement of corrugated gauze material provides the best value when measured on the basis of pressure drop per theoretical stage.
Popular material: SUS304, SUS316,Carbon Steel ,Alloy etc.
Package: Pallets.
Introduction:
Metal structured packing has three popular types including wire gauze corrugate structured packing, perforated plate corrugated Packing
Wire gauze corrugate structured packing is a high efficiency, corrugated-type packing constructed with a wire gauze material. This product is typically used for fine chemical distillation when fouling is not a concern. Its applications is often vacuum distillations where the liquid rates are extremely low and minimizing pressure drop is critical. The closely woven wires spread the low liquid flow through capillary action. This arrangement of corrugated gauze material provides the best value when measured on the basis of pressure drop per theoretical stage.
| Model | Specific surface | Bulk density | Void ratio | Obl | ΔP | Theo plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250X/Y | 250 | 125 | 95 | 30/45 | 100-400 | 2.5-3 | 100 | 2.5-3.5 |
| 500X/Y | 500 | 250 | 90 | 30/45 | 400 | 4-5 | 200 | 2.0-2.4 |
| 700X/Y | 700 | 350 | 85 | 45/30 | 600-700 | 8-10 | 333-400 | 1.5-2.0 |

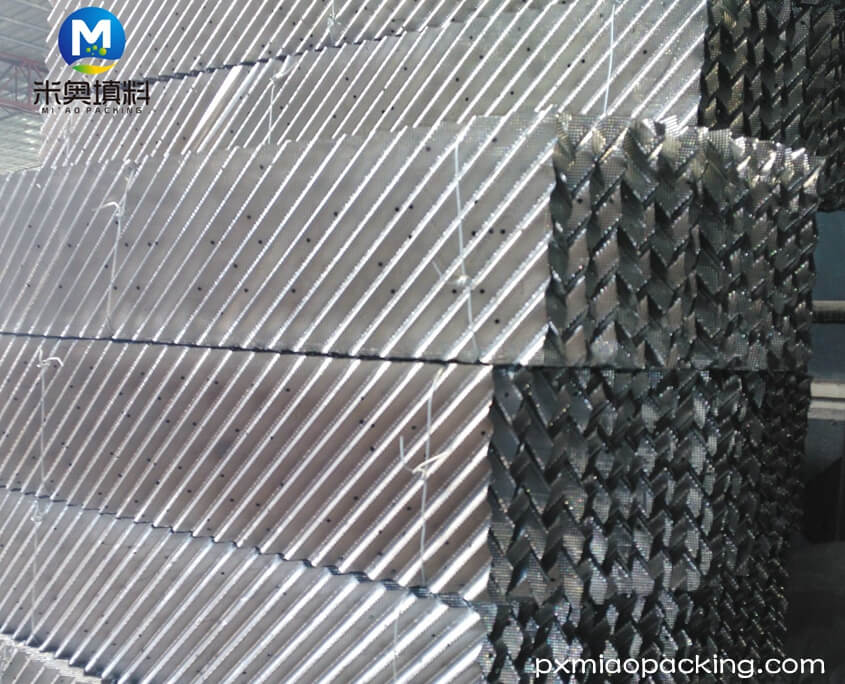

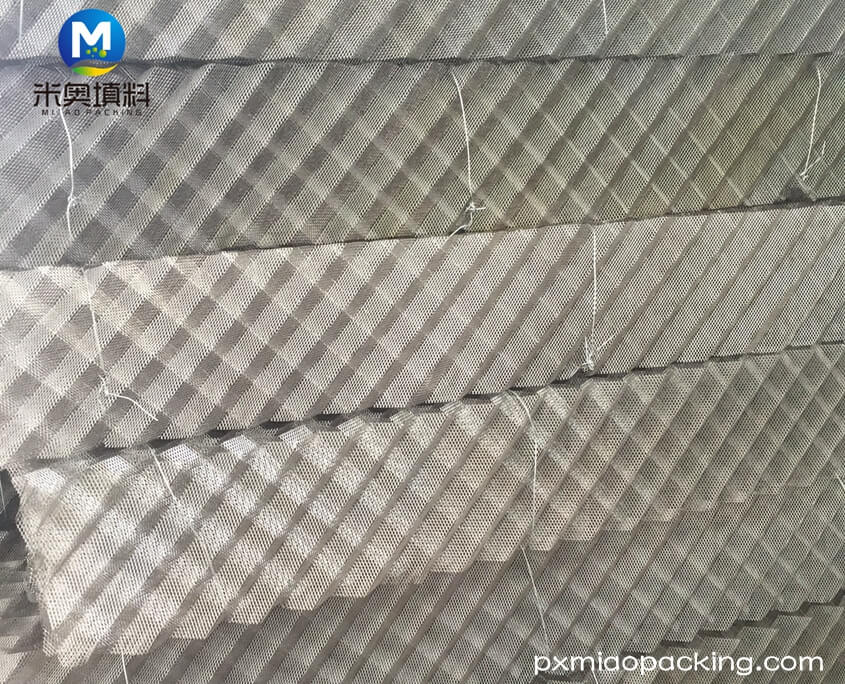

Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbon steels. Aluminium, copper bronze etc. Further materials available on request.
Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m;Pressure: Vacuum to high pressure
Liquid lood: 0.2 to more than 300 m3/m2.h
System: Ethylbenzene/ styrene, Fatty acide, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
| Model | 125Y | 250Y | 350Y | 500Y | 125X | 250X | 350X | 500X | |
| Specific surface | (m2/m3) | 125 | 250 | 350 | 500 | 125 | 250 | 350 | 500 |
| Bulk density | (kg/m3) | 100 | 200 | 280 | 360 | 100 | 200 | 280 | 360 |
| Void ratio | (%) | 98 | 97 | 94 | 92 | 98 | 97 | 94 | 92 |
| Obl | angle | 45° | 45° | 45° | 45° | 30° | 30° | 30° | 30° |
| P | (Pa/plate) | 200 | 300 | 350 | 400 | 140 | 180 | 230 | 280 |
| Theo plate | (piece/m) | 1~1.2 | 2~2.5 | 3.5~4 | 4~4.5 | 0.8~0.9 | 1.6~2 | 2.3~2.8 | 2.8~3.2 |
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 7 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
