Plastic Structured Packing

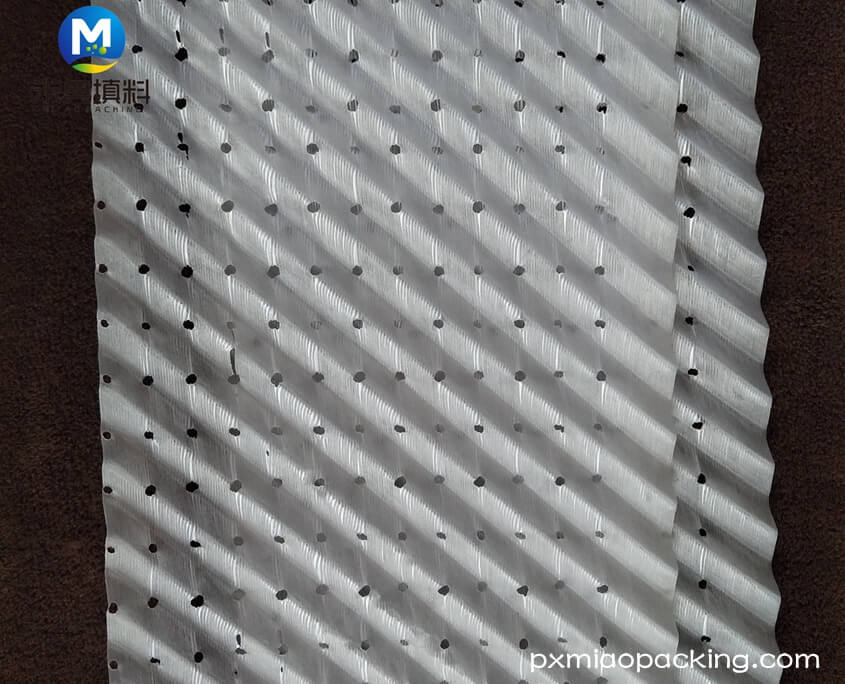

Plastic structured packing has advantage of light weight, large capacity, and low pressure drop, large specific surface and easy to be instead. The wire is an admixture of PP and polyacrylonitrile, the plastic corrugated plate packing is made of PP and PVDF plate, which can be perforated increase mass transferring efficiency.
Design: Our own design or according to clients’ drawings and requirements.
Package

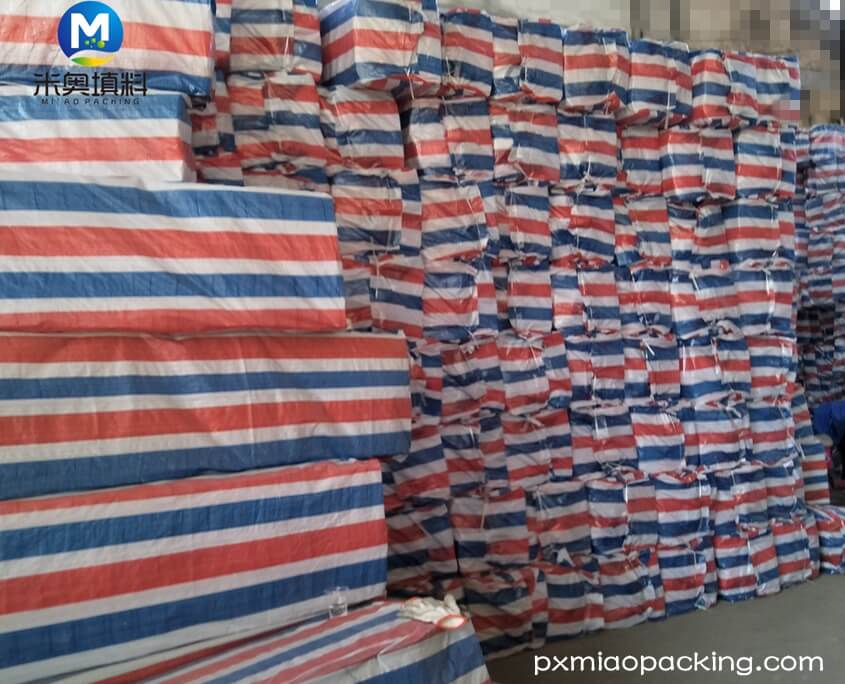

Woven cloth
Pallets
Available materials: PP, PE ect.
Introduction:
Plastic structured packing has advantage of light weight, large capacity, and low pressure drop, large specific surface and easy to be instead. The wire is an admixture of PP and polyacrylonitrile, the plastic corrugated plate packing is made of PP and PVDF plate, which can be perforated increase mass transferring efficiency.
Application
Mass transfer of temperature sensitive chemical products.
Negative pressure, pressurization operation.
Batch and continuous distillation.
Technical Specification
| Model | Theoretical plate number Piece/m | Specific area m2/m3 | Void volume m3/m3 | Per plate Pa/n | Bulk density Kg/m3 | Liquid loading m3/m2.h | Max F factor m/s(/m3)0.55 |
| 125Y | 1-2 | 125 | 0.985 | 2×10-4 | 37.5 | 0.20-100 | 3 |
| 250Y | 2-2.5 | 250 | 0.97 | 3×10-4 | 75 | 0.20-100 | 2.6 |
| 350Y | 3.5-4 | 350 | 0.95 | 2×10-4 | 105 | 0.20-100 | 2.0 |
| 500Y | 4-4.5 | 500 | 0.93 | 3×10-4 | 150 | 0.20-100 | 1.8 |
| 125X | 0.8-1.9 | 125 | 0.985 | 1.4×10-4 | 37.5 | 0.20-100 | 3.5 |
| 250X | 1.5-2 | 250 | 0.97 | 1.8×10-4 | 75 | 0.20-100 | 2.8 |
| 350X | 2.3-2.8 | 350 | 0.958 | 1.3×10-4 | 105 | 0.20-100 | 2.2 |
| 500X | 2.8-3.2 | 500 | 0.93 | 1.8×10-4 | 150 | 0.20-100 | 2.0 |
Package
Woven cloth
Pallets
FAQ
1.Can you provide free samples?
We can provide free samples within 1kg.
2.Who will pay the courier fee?
Customers need to pay the courier fee. And we will return this courier fee in our following order.
3.Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.
4.Could customer customize product?
Yes, we can customize products according to the customers’ requirement.
5.What’s your delivery time?
For 1*20gp, delivery time is within 3 days after we get the deposit.
6.How to pay?
T/T, L/C, Paypal or Western Union.
7.What’s your shipping port of loading?
Shanghai, Guangzhou, Shenzhen or according to customer’s request.
